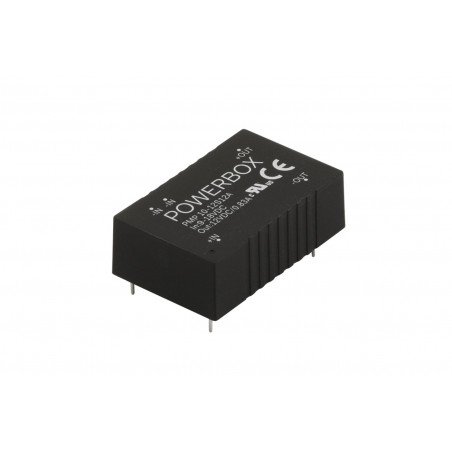

Convertisseurs DC/DC de la série PMP
  • Convertisseurs DC/DC de la série PMP

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Cosel

Convertisseurs DC/DC de la série PMP

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOOP & 3kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 10W Output Power
  • Various Protection Features

Industries

  • Industrial
  • Medical

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off
PMP Models Input Voltage Output Type Output Voltages Output Power
PMP03-12D DC9 - 18V Dual More information in the data sheet 3W
PMP03-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMP03-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 3W
PMP03-24S DC18 - 36V, DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMP03-48D DC36 - 75V Dual More information in the data sheet 3W
PMP03-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMP03-5D DC4.5 - 9V Dual More information in the data sheet 3W
PMP03-5S DC4.5 - 9V Single 3.3V, 5V, 12V, 15V, 24V 3W
PMP06-12D DC9 - 18V Dual More information in the data sheet 6W
PMP06-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMP06-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 6W
PMP06-24S DC18 - 36V, DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMP06-48D DC36 - 75V Dual More information in the data sheet 6W
PMP06-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMP06-5D DC4.5 - 9V Dual More information in the data sheet 6W
PMP06-5S DC4.5 - 9V Single 3.3V, 5V, 12V, 15V, 24V 6W
PMP10-12D DC9 - 18V Dual More information in the data sheet 10W
PMP10-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMP10-24D DC18 - 36V, DC9 - 36V Dual More information in the data sheet 10W
PMP10-24S DC18 - 36V, DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMP10-48D DC36 - 75V Dual More information in the data sheet 10W
PMP10-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V 10W
PMP10-5D DC4.5 - 9V Dual More information in the data sheet 10W
PMP10-5S DC4.5 - 9V Single 3.3V, 5V, 12V, 15V, 24V 10W
