Fabricant: YM Tech

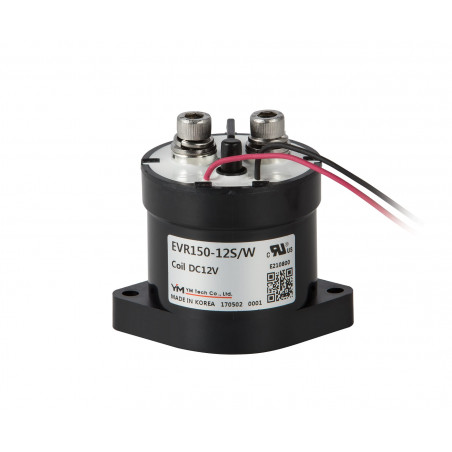

Relais CC EVR150

  • EVR150

Application

  • Battery Energy Storage System
  • Electric Vehicle,
  • Charging System,
  • Solar System,
  • Golf Car
  • Fuel Cell Vehicle
  • etc.

Magnet coil ratings

Nominal voltage (v)Nominal current (mA)Coil resistance (Ω)Pick-up voltage (V)MaxDrop-out voltage (V)MinMax. voltage (V)MaxCoil power(W) dissipation
DC 220 27 8,600 75% 10% 130% 5.6 ~ 5.9
110 52 2,100
72 83 870
60 95 630
48 117 410
36 156 230
24 245 110
12 480 25
6 952 6.3

Contact ratings

Type1Pole Resistive load (L/R≤1㎳)
Max. Continuous current (wire size 50㎟) 170A
Max. switching current 150A
Max. switching voltages 1200VDC 30A
Contact rating switching voltages 12~1200VDC
Max. cut-off current 300VDC 1000A 3 Ops
Voltage drop across contacts per 100A 30mV Max.
Min. permissible load 12V DC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST-NO.)
General Aux. Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux. Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contacts Max. 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. 1mA 5VDC / 1mA 5VAC

Characteristics

Initial insulation resistanceMin. 100㏁ 500V DC
Expected life Mechanical (Min.) 2×106
Electric (L/R≤1㎳) 450V DC 10A 1×104
250V DC 15A 2×105
Initial breakdown voltage Between open contacts 3500V AC 60 Sec. 10mA
Between contacts & coil 3500V AC 60 Sec. 10mA
Operate time (at 20℃) Max. 20㎳
Release time (at 20℃) Max. 5㎳
Shock resistance Functional Min 147 ㎨ {15G}
Destructive Min 490 ㎨ {50G}
Vibration resistance Functional 100 ㎨ {10G} 10 to 500㎐
Destructive 100 ㎨ {10G} 10 to 500㎐
Conditions for operation transport and storage Ambient temperature -40℃ to +85℃
Humidity 5 to 85% R.H.
Unit weight 300g
