Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: YM Tech

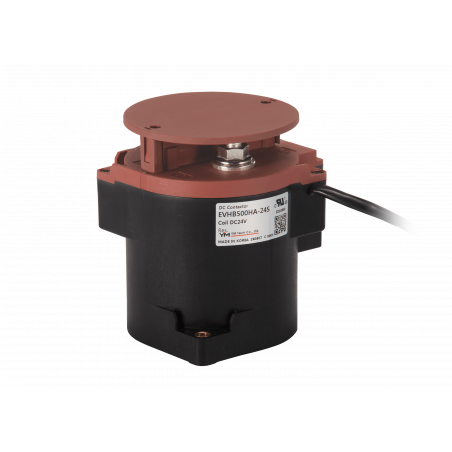

Relais DV EVHB500

  • EVHB500

Application

  • Electric Vehicle,
  • Charging System,
  • Battery Energy Storage System,
  • Solar System,
  • etc.

Magnet coil ratings

Nominal voltage(V)Inrush Coil current 100ms (Max.)Holding Coil current (mA)Pick-up voltage (V)Max.Drop-out voltage (V)MinHolding voltage (V)Min.Max. voltage (V)Max
B 72 1.3A 0.06A 32VDC 18VDC 22VDC 95VDC
60 0.08A
36 0.12A
A 36 3.8A 0.1A 9VDC 6VDC 7.5VDC 36VDC
24 0.16A
12 0.35A
12 1.4A 0.32A 9VDC 6VDC 7.5VDC 18VDC
24 1.1A 0.16A 18VDC 12VDC 13.5VDC 32VDC

Contact ratings

Type1Pole Resistive load (L/R≤1㎳)
Continuous current (wire size 325㎟) 500A
Max. switching current 750V DC 500A UL Certification
1000V DC 300A
1500V DC 100A
Max. switching Voltages 1500VDC / 1000VAC
Contact Rating switching voltages 12~1500VDC / 1000VAC
Voltage drop across contacts per 100A 30mV Max
Min. permissible load 12VDC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST-NO.)
General Aux. Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux. Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contacts Max. 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. 1mA 5VDC / 1mA 5VAC

Characteristics

Expected lifeMechanical (Min.)2×106
Electric (L/R≤1㎳) 750V DC(+),(-) 500A 1×103
1000V DC(+),(-) 300A 1×103
1500V DC(+),(-) 100A 1×103
Initial insulation resistance Min. 100㏁ 500V DC
Initial breakdown voltage Between open contacts 4500V AC 60 Sec. 5mA
Between contacts & coil 4500V AC 60 Sec. 5mA
Operate time (at 20℃) Max. 40㎳
Release time (at 20℃) Max. 10㎳
Shock resistance Functional Min 196 ㎨ {20G}
Destructive Min 490 ㎨ {50G}
Vibration resistance Functional 100 ㎨ {20G} 80 to 2000㎐
Destructive 100 ㎨ {20G} 80 to 2000㎐
Conditions for operation transport and storage Ambient temperature -40℃ to +85℃
Humidity 5 to 85% R.H.
Unit weight 980g
