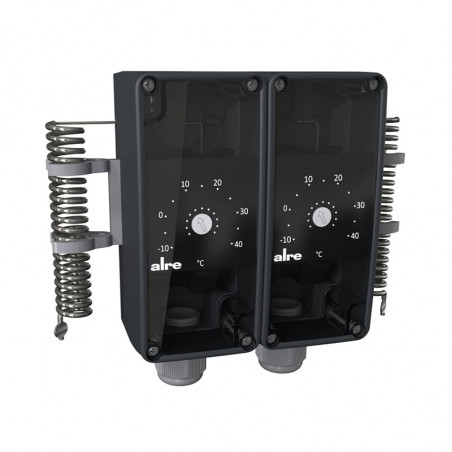

![Thermostat de paix double rtksa Thermostat de paix double rtksa](https://www.dacpol.eu/20332-large_default/thermostat-de-paix-double-rtksa.jpg)
![Thermostat de paix double rtksa Thermostat de paix double rtksa](https://www.dacpol.eu/20332-large_default/thermostat-de-paix-double-rtksa.jpg)
Vous devez être connecté
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Les photos sont à titre informatif uniquement. Voir les spécifications du produit
please use latin characters
Application
RTKSA plant room thermostats were specially developed for use in industrial halls, exhibition halls, air halls and greenhouses. When used as a frost protection controller, the higher tolerances at the end of the scale must be observed. 2 separate setting ranges, heating and/or cooling.
Technical data
Color: | Anthracite grey (similar to RAL 7016), front side transparent |
Sensor material: | V4A |
Max. sensor temperature | Top scale value +15% |
Max. head temperature: | 50 °C |
Permissible atmospheric humidity: | Max. 95% rel. humidity, non-condensing |
Operating voltage: | none |
Max. switching current: | NC contact: 16 (2.5) A at 230 VAC +10% 0.25 A at 230 VDC +10% NO contact: 6.3 (2.5) A at 230 VAC +10% 0.25 A at 230 VDC +10% |
Min. switching current: | Min. 100 mA at 24 V (AC/DC) |
Max. switching voltage: | 230 VAC 50/60 Hz, 230 VDC |
Min. switching voltage: | 24 VAC/50 Hz, 24 VDC |
Switching element: | microswitch |
Switching contact: | 2 x togglers, potential-free |
Control function: | Heating or cooling, heating and cooling |
Hysteresis: | 1.3 K |
Electrical connection: | Push-in terminals |
Mounting/attachment: | wall mounting |
Protection class: | I |
Protection rating: | IP 54 (optionally IP 65) |
Safety and EMC: | In accordance with DIN EN 60730 (VDE 0631) |
Sensor: | liquid-filled capillary |
General features: | Scale: degrees Celsius |
Type testing by TÜV in accordance with DIN EN 14597
Type | Item no. | 1st Control range | 2nd Control range | Features | PG |
---|---|---|---|---|---|
RTKSA-114.110 | KA011100 | 0…+50 °C (TW, internal) | 0…+50 °C (TW, internal) | 2 x internal setting | II |
RTKSA-114.010 | KA011101 | −10…+40 °C (TW, internal) | −10…+40 °C (TW, internal) | 2 x internal setting | II |
Type comparison (old/new type)
Old alre types | Control range | Hysteresis | New alre types | Control range | Hysteresis |
---|---|---|---|---|---|
JET-30 | 10…45 °C (external) TR 0 ...35 °C (internal) TW |
approx. 1 K | RTKSA-114.110 | 0…+50 °C (internal) TW 0…+50 °C (internal) TW |
1.3 K |
JET-31 | 10…+45 °C (internal) TW 0…+35 °C (internal) TW |
approx. 1 K |
TR = temperature controller, TW = temperature monitor
Type testing by TÜV in accordance with DIN EN 14597
