Fabricant: SEIFERT mtm SYSTEM

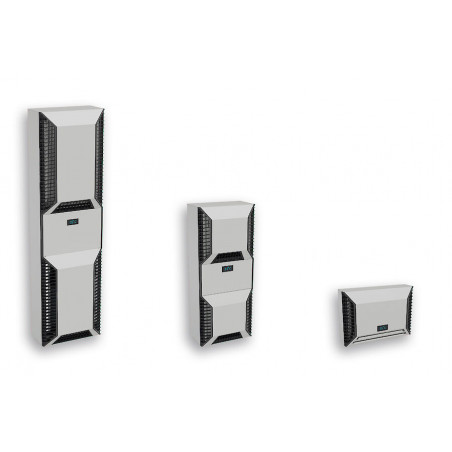

Climatiseur SlimLine PRO

SLIMLINE PRO - enclosure cooling with a new design

The new mounting system allows a quick and easy installation thanks to simplified enclosure cutouts. SLIMLINE PRO cooling units can either be wall or recessed mounted. The microchannel condenser uses up to 50% less refrigerant which leads to a significant reduction in the CO₂ equivalence. All models have active condensate management thanks to integrated evaporation as well as an electronic controller with LED colour display.


SLIMLINE PRO units have an extended temperature range from +10°C to +60°C to guarantee reliable operation even in extreme heat and an ingress protection class of IP 56. They also comply to NEMA / UL type 3, 3R, 12, 4 and 4X (stainless steel models). With cooling capacities from 350 W up to 6.2 kW they cover a wide range of industrial cooling applications for machines and plants. Multiple cooling capacities with just one cutout simplify the inventory of cooling units and spare parts. All units come in powder coated mild steel housing (RAL 7035). For applications where hygiene and corrosion protection are required, we offer different grades of stainless steel housing.

TYPE MOUNTING COOLING CAPACITY L35L35
KG 8503 Wall mounted / recessed 350 W @ 50 Hz
350 W @ 60 Hz
KG 8505 Wall mounted / recessed 550 W @ 50 Hz
550 W @ 60 Hz
KG 8506 Wall mounted / recessed 670 W @ 50 Hz
680 W @ 60 Hz
KG 8508 Wall mounted / recessed 825 W @ 50 Hz
870 W @ 60 Hz
KG 8512 Wall mounted / recessed 1.2 kW @ 50 Hz
1.2 kW @ 60 Hz
KG 8412 Wall mounted / recessed 1.50 kW @ 50 Hz
1.55 kW @ 60 Hz
KG 8515 Wall mounted / recessed 1.5 kW @ 50 Hz
1.5 kW @ 60 Hz
KG 8520 Wall mounted / recessed 2.0 kW @ 50 Hz
2.1 kW @ 60 Hz
KG 8525 Wall mounted / recessed 2.5 kW @ 50 Hz
2.5 kW @ 60 Hz
KG 8540 Wall mounted / recessed 4.0 kW @ 50 Hz
4.2 kW @ 60 Hz
KG 8562 Wall mounted / recessed 6.0 kW @ 50 Hz
6.2 kW @ 60 Hz
