Fabricant: TEXA industries

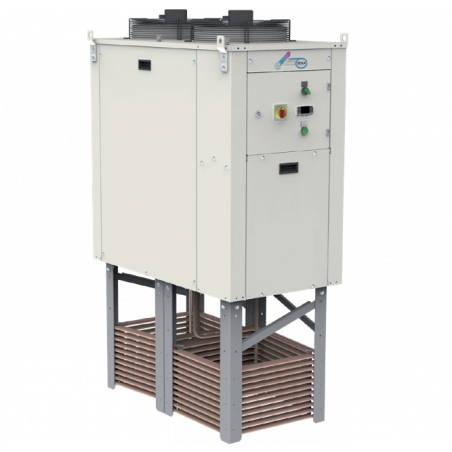

TCIA2-A7 Taille 3 Refroidisseurs à serpentin immergé

TCIA2-A7 Size 3

Immersion coil chillers

AIR CONDENSER
Finned high-efficiency copper tube condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille. On request, centrifugal fan for air expulsion ducting.
ELECTRICAL PANEL
With main disconnect switch, fused motor protection.
MANAGEMENT AND CONTROL
The TX110 control unit manages the chiller's operation, providing warnings including high/low temperature alarms and a general serious fault alarm, with the display indicating if this refers to the refrigeration circuit or protection of the immersion coils. An on-off contact allows the machine to be switched on remotely. Control disconnect switch for switching on the machine.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
LE - Electric level
FP - Polyurethane air filter
TD - Differential fluid temperature management (two sensors)
BGP - Hot gas bypass for +/- 0.5 K temperature precision
- Agitator for fluid movement
- Non-standard paint/coating
- Satin AISI 304 stainless steel framework
- Design of higher cooling powers with dedicated framework
- Centrifugal fans for condensation air ducting
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels
COMPRESSOR
Hermetic SCROLL compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, drier filter, thermostatic valve, high- and low-pressure pressure switch, refrigerant gas.
EVAPORATOR
Dual concentric coil in AISI 304 stainless steel. Resin-covered stainless-steel regulation sensor, IP67 rated.
