Fabricant: TELE Haase

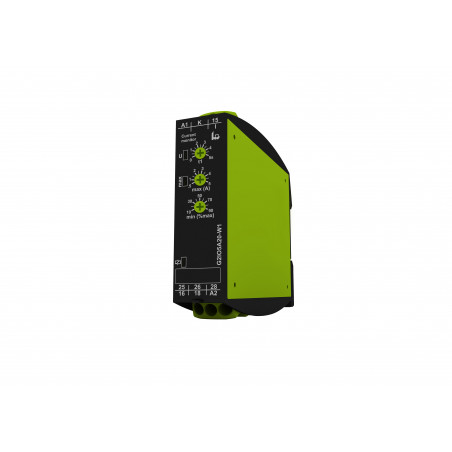

G2IO5A20-W1 - Relais de surveillance de courant

  • G2IO5A20-W1
  • Valeur nominale 5A AC/DC
  • Sortir 2 x przełączalne
  • Nombre de phases jednofazowe
  • source de courant moduł TR 12-400V AC

G2IO5A20-W1 - Current monitoring relay

G2IO5A20-W1 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of current underloads in the monitored circuit. Measuring range 0.5A - 5A with a reset time of up to 5 seconds. The user can choose from 3 functions (in the variant with or without a latch) and two relay outputs. The G2IO5A20-W1 was designed with power distribution systems and control cabinets in mind. The ease of use with the control units located on the front panel, compact size and power supply 12 - 400VAC (with the possibility of using the TR2 power module) make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.

Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

  • Valeur nominale 5A AC/DC
  • Sortir 2 x przełączalne
  • Nombre de phases jednofazowe
  • source de courant moduł TR 12-400V AC

G2IO5A20-W1 - Current monitoring relay

G2IO5A20-W1 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of current underloads in the monitored circuit. Measuring range 0.5A - 5A with a reset time of up to 5 seconds. The user can choose from 3 functions (in the variant with or without a latch) and two relay outputs. The G2IO5A20-W1 was designed with power distribution systems and control cabinets in mind. The ease of use with the control units located on the front panel, compact size and power supply 12 - 400VAC (with the possibility of using the TR2 power module) make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.
