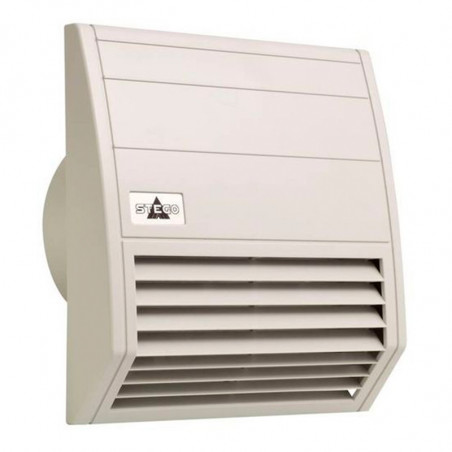

Ventilateur avec filtre FF 018: 200 m³ / h
  • Ventilateur avec filtre FF 018: 200 m³ / h

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: STEGO

Ventilateur avec filtre FF 018: 200 m³ / h

  • Low maintenance
  • High through-flow air volume
  • Functional design
  • Time-saving installation
  • UV resistant

Ventilator with filter - FF 018

Filter fans are used to provide an optimum  climate  in enclosures. The interior temperature of an enclosure can be reduced by channelling cooler filtered  outside air into  the enclosure thus expelling heated internal  air. The resulting air flow prevents formation  of localised hot pockets and protects the electronic components from overheating. These filter  fans are intended for indoor use. The plastic used for the hood  is highly  UV light  resistant.

Technical data
Axial fan, ball bearing

service life 50,000h  at +25°C (+77°F), 65% RH fan body aluminium, rotor metal
Connection

3-pole clamp for 2.5mm², clamping torque 0.8Nm max.
Casing (filter fan and exit filter)                                                          plastic according to UL94 V-0, light grey
Mounting  frame with double-sided industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional  use of screws necessary (see drilling template); a template for the enclosure cut-out  is included in the delivery of the filter fans
Filter  mat                                                                                                         G4 acc. to DIN EN 779, filtering  degree 94%
Filter material

synthetic fibre with progressive construction, temperature  resistant to +100°C, self-extinguishing  class F1, moisture resistant to 100% RH,
reusable - cleaning by washing or vacuuming
Operating/Storage temperature                                           - 45°C - +70°C
Protection type IP54* /1 (with protective conductor)
Rear view 118mm
Air flow sensor built into the grille that protects the toes fan fltrem. np. art.nr 21804.0-00

Art. No. Operating voltage Air volume,
free flow		 Air volume
with
exit filter		 Current
consumption		 Power
consumption		 Average noise level
(DIN EN ISO 4871)		 Depth in
enclosure		 Enclosure
cut-out		 Weight
(approx.)		 approvals

01804.0-00

 AC230V, 50 Hz 200 m³/h 125m³/h 320 mA 45 W 52 dB (A) 95 mm 176x176 mm+ 0,4 1,70 kg UL File No. E234324

01804.0-01

 AC120V, 60 Hz* 200 m³/h 125m³/h 470 mA 39 W 52 dB (A) 95 mm 176x176 mm+ 0,4 1,70 kg UL File No. E234324
Warning
* Devices operating voltage AC 120V, 60Hz have a higher yield of approx. 15%
Output filters series EF 118
Art. No Depth in enclosure Enclosure cut-out Weight (approx.) Filter mat Protection type

11802.0-00

 16 mm 176x176 mm+ 0,4 0,60 kg G4 acc. to DIN EN 779, filtering degree 94% IP54*


Cartridges spare FM 118
The filter cartridge 168x168 mm
G4 (1 packing unit = 3 pcs.) Nr. art. 08602.0-00
F5 (1 packaging unit = 3 pcs.) Nr. art. 08605.0-00

Cartridges spare FM 118
Art. No Operating
voltage		 Air volume,
free flow		 Air volume
with
exit filter		 Current
consumption		 Power
consumption		 Average noise level
(DIN EN ISO 4871)		 Depth in
enclosure		 Enclosure cut-out Weight
(approx.)

21804.0-00

 AC230V, 50 Hz 200 m³/h 125m³/h 320 mA 45 W 52 dB (A) 95 mm 176x176 mm+ 0,4 1,70 kg

21804.0-01

 AC120V, 60Hz* 200 m³/h 125m³/h 470 mA 39 W 52 dB (A) 95 mm 176x176 mm+ 0,4 1,70 kg
