Fabricant: STEGO

Souffleur chauffant HVI 030 500W à 700 W (ventilateur avec ventilateur)

The compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with fan, but is also available without axial fan (for self-installation). The fan heaters are available with two different mounting systems – either mounting by screw fixing or with a new and unique twist clip mounting system. These options allow for a quick and easy installation of the fan heater.

Technical data:
 Heating element  high performance cartridge
Temperature safety cut-out  with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure
Axial fan, ball bearing  airflow 150m³/h, free flow service life 50,000h at +25°C (+77°F)
Connection  3-pole dual pressure clamp for rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Casing  plastic according to UL94 V-0, black
Mounting  twist clip for 35mm DIN rail, EN 60715 or screw fixing (M6), torque 2Nm max., washers have to be used

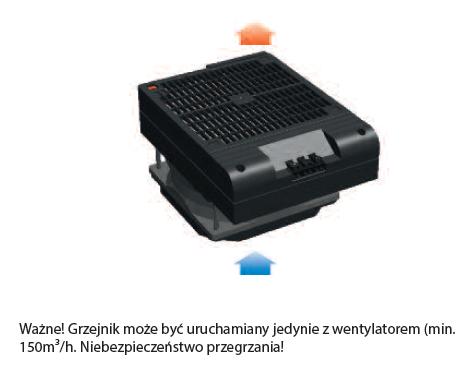

Fitting position  vertical airflow (air outlet up)
Dimensions  169 x 127 x 89mm
Weight  approx. 1.3kg
Operating temperature  VDE: -10 to +50°C (+14 to +122°F) UL: -10 to +40°C (+14 to +104°F)
Storage temperature  -45 to +70°C (-49 to +158°F)
Operating/Storage humidity  max. 90% RH (non-condensing)
Protection type/Protection class  IP20 / heater: II (double insulated); fan: I (earthed)
Approvals  VDE, UL File No. E234324, EAC
Note  other heating capacities and voltages available on request

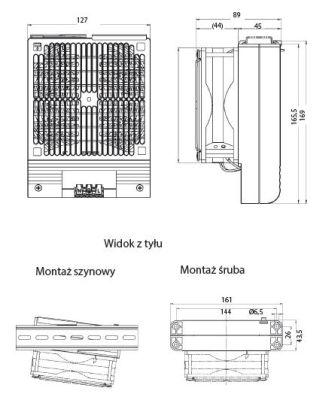

Dimensions [mm]

Art. No. twist clip fixing Art. No. screw fixing Operating voltage Heating capacity Recommended pre-fuse T (time-delay) Dimensions Weight (approx.)
03084.0-00 03084.0-01 230V AC, 50/60 Hz 500W 3,15 A 169 x 127 x 93 mm 1,3 kg
03083.0-00 03083.0-01 230V AC, 50/60 Hz 600W 3,15 A 169 x 127 x 93 mm 1,3 kg
03082.0-00 03082.0-01 230V AC, 50/60 Hz 700W 4 A 169 x 127 x 93 mm 1,3 kg
03084.9-00 03084.9-01 120V AC, 50/60 Hz 500W 6,3 A 169 x 127 x 93 mm 1,3 kg
03083.9-00 03083.9-01 120V AC, 50/60 Hz 600W 6,3 A 169 x 127 x 93 mm 1,3 kg
03082.9-00 03082.9-01 120V AC, 50/60 Hz 700W 8 A 169 x 127 x 93 mm 1,3 kg
