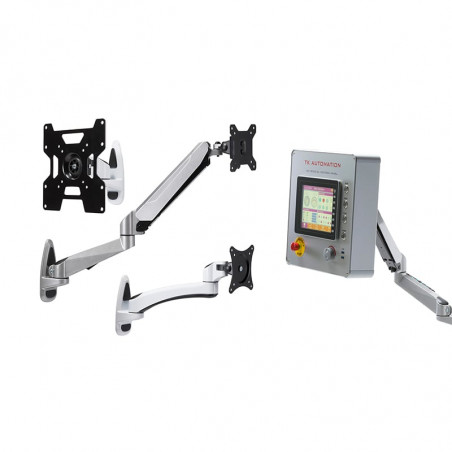

Bras de moniteur mural – série MAR

Characteristics

• Wall mount support arm move easily to the preferred positions.
• Suitable for command panel on machinery and touch panel controller. Easy installation onto the wall as well.
• Hole pitch on the monitor bracket is compatible with VESA mount standards. Possible to mount PC display without modification.

MAR-312W specifications

• Adjustable bolt for up/down direction on arm is firmly set initially.
• Adjust the movement according to the installed device.
• Arm full length ~ 612mm
• Max load : 6.5kg (including product weight, adjustable bolt firmly locked)
• Material : Steel • Plastic • Aluminium diecast
• Wall mounting screws included.

Pan-Tilt bracket dimensions

Wall mounting bracket dimensions

MAR-111W specifications

• Pan-Tilt bracket angle can be adjusted by loosening the bolt after replacing the cover.
• Arm full length ~ 340mm
• Max load : 8kg (including product weight)
• Material : Steel • Plastic • Aluminium diecast
• Wall mounting screws included.

Pan-Tilt bracket dimensions

Wall mounting bracket dimensions

MAR-110W specifications

• Pan-Tilt bracket do not move up/down direction.
• Arm full length ~ 130mm
• Max load : 8kg (including product weight)
• Material : Steel • Plastic • Aluminium diecast
• Wall mounting screws included.

Pan-Tilt bracket dimensions

Wall mounting bracket dimensions

Dimensions
