HIGHF - Transformateurs de courant moyen de la tension moyenne

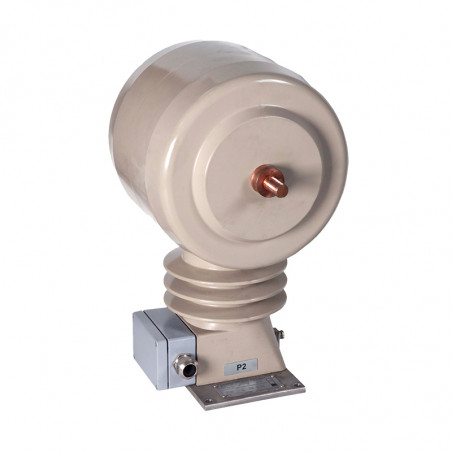

IGHF Outdoor Head Current Transformer

The cast resin outdoor current transformer is capable to withstanding the outdoor environmental condition. The current transformer is maintenance-free and only mountable in vertical situation. The primary current is connected with an internal bus bar. The secondary windings are used for measurement and / or protection purposes, or optional with test winding


Technical Data



Design Cast-resin insulated
Colour brown
In accordance to VDE 0414; IEC 60044; ASCI C 57.13; BS 1675
Class of insulation B
Ith 100 x IN (max.100kA)
Idyn: 2,5 x ITh (max. 125kA)
Frequency : 50Hz, 60Hz other frequency on request
Rated insulation voltage complying with the standard
Secondary current 1A; 5A; other current on request
Burde / Class: depending from number of cores accu-racy limit factors and the rated output
Secondary terminal box: with degree of protection IP64 Base
Special model: Secondary switch-over


Type

IGHF 12B 300

IGHF 24B 300

IGHF 36B 300
Insulation voltage [kV] 12/28/75 24/50/125 36/70/170
Max. Ipn[A] 3000 3000 3000
Creepage distance [mm] 409 480 1124
Max. number of cores 4 5 5
Number of rips 3 4 10
Weight [kg] 46 48 56


Dimensional drawing

IGHF - przekładniki prądowe napowietrzne średniego napięcia - wymiary

IGHF - przekładniki prądowe napowietrzne średniego napięcia wymiary


Type A B C D Sec. Terminals Rippen

IGHF 12

 300 300 350 500 8 3

IGHF 24

 300 300 395 545 10 4

IGHF 36

 300 300 542 692 10 10
