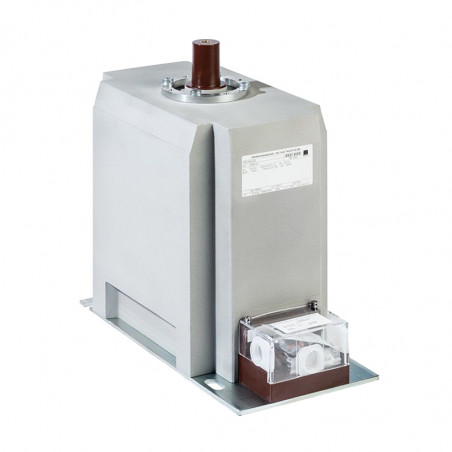

The UGECAK is a medium voltage insulated voltage transformer with screening against electric fields which enables mounting with no phase distance. This product is cast resin insulated and touch-proved. The transformer is able to measure voltage up to 12kV and is suitable for front- or top conus. The UGECAK is equipped with conical socket connection according to DIN47636. The voltage transformer can be used for switchgear, is maintenance-free and mountable in any position. The secondary terminals are protected with a sealable cover with a degree of protection of IP 20. The product is GOST approved.
Technical Specifications
Application | Switchgear |
---|---|
Standard | IEC61869-3, VDE 0414 |
Rated inulation voltage | Up 12/28/75kV |
Maximum rated primary voltage | 11/ √3 kV |
Rated voltage factor | 1.9UN /8h, 1.2UN/continious |
Secondary voltages | 100/ √3 V or 110/ √3 V other options available on request |
Rated output | As required For example. 2.5, 5, 10, 15, 30 VA |
Accuracy class | As required. For example . 0.2, 3P |
Rated terminal limiting output Sth | 500VA Measuring winding 100VA Auxiliary winding |
Rated frequency | As required. For example. 50/60 Hz |
Class of insulation | E |
Secondary terminals | Protected with a sealable cover, degree of protection IP 20 |
Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?
Ajouter à la liste de souhaits
Vous devez être connecté
The UGECAK is a medium voltage insulated voltage transformer with screening against electric fields which enables mounting with no phase distance. This product is cast resin insulated and touch-proved. The transformer is able to measure voltage up to 12kV and is suitable for front- or top conus. The UGECAK is equipped with conical socket connection according to DIN47636. The voltage transformer can be used for switchgear, is maintenance-free and mountable in any position. The secondary terminals are protected with a sealable cover with a degree of protection of IP 20. The product is GOST approved.
Technical Specifications
Application | Switchgear |
---|---|
Standard | IEC61869-3, VDE 0414 |
Rated inulation voltage | Up 12/28/75kV |
Maximum rated primary voltage | 11/ √3 kV |
Rated voltage factor | 1.9UN /8h, 1.2UN/continious |
Secondary voltages | 100/ √3 V or 110/ √3 V other options available on request |
Rated output | As required For example. 2.5, 5, 10, 15, 30 VA |
Accuracy class | As required. For example . 0.2, 3P |
Rated terminal limiting output Sth | 500VA Measuring winding 100VA Auxiliary winding |
Rated frequency | As required. For example. 50/60 Hz |
Class of insulation | E |
Secondary terminals | Protected with a sealable cover, degree of protection IP 20 |
