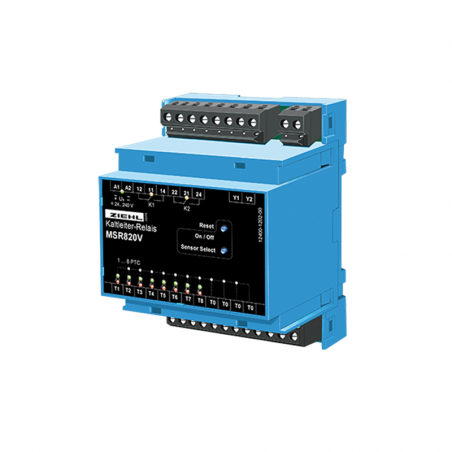

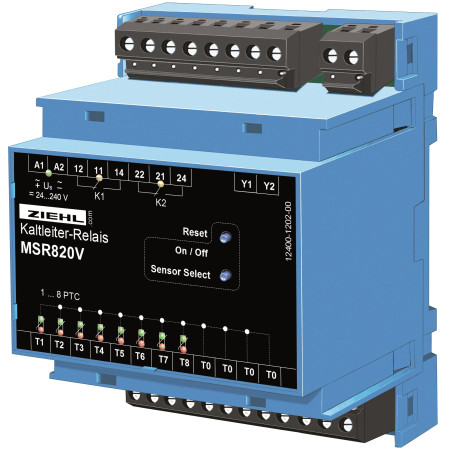

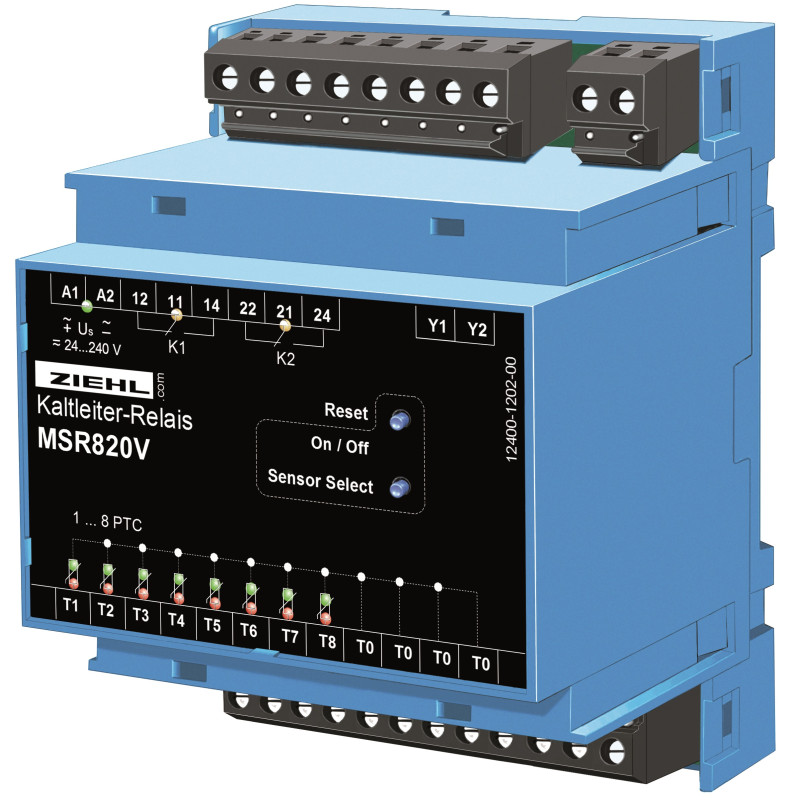

Relais thermique PTC Type MSR820V
  • Relais thermique PTC Type MSR820V

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: ZIEHL

Type de relais thermique PTC MSR820V

The MSR820V monitors up to 8 PTC-resistor-circuits at the same time. A common relay signals an alarm or an error in a sensorcircuit. The inputs can be enabled or disabled during operation. The MSR820V can also be used as a fault annuciator for collective reports.
  • 1-8 PTC-circuits, each 1…6 PTC in series (max. coldresistance 1500Ω/circuit)
  • Easy activating/deactivating of PTC-circuits (display with LEDs)
  • 2 potential-free relay-outputs, display of switching state with LEDs
  • Display of state of PTC-circuits with 2 LEDs per circuit
  • Electronic reclosing-lock (disconnectible with bridge Y1-Y2)
  • Monitoring of contacts for collective fault-reports
  • Programmable functions:
    - Monitoring of short-circuit of PTCs (OFF / ON)
    - External Reset as normally closed (nc) or open (no) contact (Y1, Y2)
    - Power-fail-safe reclosing lock (OFF / ON)
    - Function of relay:
    K1 and K2 closed-current mode
    K1 and K2 operating-current mode
    K1 closed- and K2 operating-current-mode
  • Universal supply-voltage AC/DC 24 – 240 V
  • Mounting on DIN-rail 35mm EN 60715 or wallmount (Option)
  • Mounting height 55 mm


Part number:
T221709 AC / DC 24-240 V




Technical data


Rated supply-voltage Us AC / DC 24-240 V 0/50/60 Hz + 25 / -20%,ADC 20,4 - 297 V ……... AC 20 - 264
Connectable PTC-resistors 8 x 1...6 pieces according to DIN VDE V 0898-1-401 (formerly DIN 44081/82)
Switching Point 3,3 kΩ ... 4 kΩ typical 3,65 kΩ
Output Relay 2 x 1 change-over contact (CO)
Type of contact AgSnO2
Testing Conditions see general technical information
Rated ambient Temperature range -20 ... + 55 ° C
Dimensions H x W x D Design V4: 90 x 70 x 58 mm, mounting height 55 mm
Attachment on rail NS 35 mm according to EN 60 715 or with screws M4 (option)
Obudowa ochronna / zaciski IP 30 / IP 20
Weight approx. 180 g
