Fabricant: nVent HOFFMAN

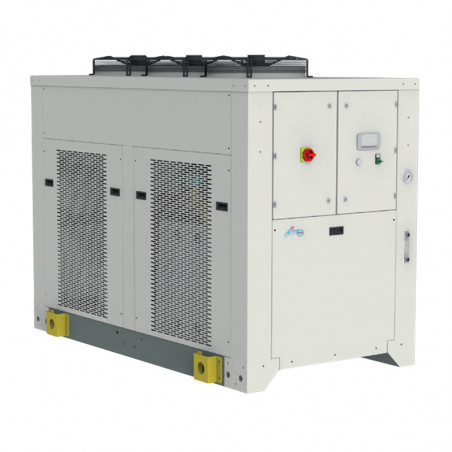

Mini refroidisseurs TCO 900-2550 W

Mini industrial coolers TCO series 900 - 2550 W


Coling power range 900 - 2550 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable
Compressor Hermetically closed compressor with thermal protection
Cooling circuit Stub pipe for cooling liquid refill, filter , high pressure switch, cooling liquid R134a
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient,spiral exchanger with ribs, protected with steel net
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve, manometr 0-10 bar . Evaporator is protected with flow sensor
Temperature control Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data


Type TCO 08 TCO 12 TCO 19
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Nominal cooling power [W] 900 1100 1600 1900 2200 2550
Ambient temperature range [°C] +15 - +45
Temperature range of oil [°C] +25 - +40
Cooling factor R134a
Supply voltage [V] 230
Power supply [W] 1775 1275 1675
Pumps
Water flow [l/min] 12, 0 12, 0 12, 0
Water pressure [bar] 20, 0 20, 0 20, 0
Water terminal [mm] 0,5‘’
Weight [kg] 44 45 46
