Fabricant: Ambrell

Puissance 75-150 kW, fréquence 15-45 kHz

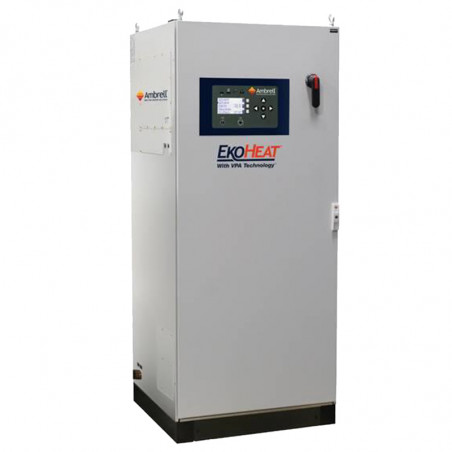

Generators for induction heating: power 75-150 kW, Frequency 15-45 kHz

EKOHEAT induction heating systems for 15-40 kHz range provide reliable and repeatable solutions for heating larger parts when efficient heating of your part dimensions requires higher frequencies than our 10kHz models. Among the many typical applications are heat treating of steels, preheating for forging of steel, aluminum, copper or brass, crystal growing, and heating of graphite and metal crucibles.

New to the EKOHEAT range are the compact induction heating systems EKOHEAT Compact which, while maintaining their technical parameters, are 50% smaller in volume and footprint.

Model*
Max power (kW)
Frequency (kHz)
Line Voltage (V)
Input Max (kVA)
EKOHEAT 75/25
75
15 - 45
360 - 520, 3 ph
87
EKOHEAT Compact 75/25
75
15 - 45
360 - 520, 3 ph
87
EKOHEAT 100/25
100
15 - 45
360 - 520, 3 ph
116
EKOHEAT Compact 100/25
100
15 - 45
360 - 520, 3 ph
116
EKOHEAT 125/25
125
15 - 45
360 - 520, 3 ph
145
EKOHEAT Compact 125/25
125
15 - 45
360 - 520, 3 ph
145
EKOHEAT 150/25
150
15 - 45
360 - 520, 3 ph
174

* Older versions of standard models of the generators were called EKOHEAT 75/30, EKOHEAT 100/30, EKOHEAT 125/30, EKOHEAT 150/30.


Generators for induction heating EKOHEAT 75 kW - 25 kHz
Max Power: 75 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 87 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 100 kW - 25 kHz
Max Power: 100 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 116 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 125 kW - 25 kHz
Max Power: 125 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 145 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 150 kW - 25 kHz
Max Power: 150 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 174 kVA

Data Sheets:
EN | FR | DE | ES

Compact generators for induction heating EKOHEAT Compact 75/100/125 kW - 25 kHz
Max Power: 75/100/125 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 87/116/145 kVA

Data Sheets:
