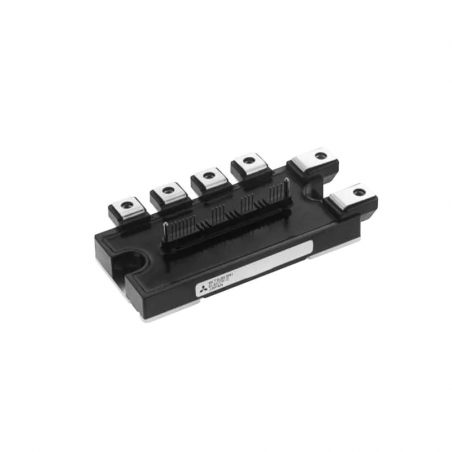

New IPM modules - L1 series. They characterise with great speed and low power losses. They are made in the same casings as L series modules. There is also new smaller L5 casing.
L1 series was designed for optimisation of connection and static losses as well as for keeping low electromagnetic noises
New series module has also greater resistance for temperature cycles.
Every transistor structure has its own temperature, short circuit and under voltage protection.
Type | Maximum Parameters | SC [A] Min | OT [°C] Min. | UV [V] typical | Casing | |||
---|---|---|---|---|---|---|---|---|
VCES [V] |
lc [A] |
CEsat TVJ =125°C [V] |
R th(c-f) [°C/W] |
|||||
600 V IPM (L1- Series) | ||||||||
PM50CL1A060 |
600 | 50 | 1.65 | 0.038 | 100 | 135 | 12 | LI |
PM50CL1B060 |
600 | 50 | 1.65 | 0.038 | 100 | 135 | 12 | L2 |
PM50RL1A060 |
600 | 50 | 1.65 | 0.038 | 100 | 135 | 12 | LI |
PM50RL1B060 |
600 | 50 | 1.65 | 0.038 | 100 | 135 | 12 | L2 |
PM50RL1C060 |
600 | 50 | 1.65 | 0.09 | 100 | 135 | 12 | L5 |
PM75CL1A060 |
600 | 75 | 1.65 | 0.038 | 150 | 135 | 12 | LI |
PM75CL1B060 |
600 | 75 | 1.65 | 0.038 | 150 | 135 | 12 | L2 |
PM75RL1A060 |
600 | 75 | 1.65 | 0.038 | 150 | 135 | 12 | LI |
PM75RL1B060 |
600 | 75 | 1.65 | 0.038 | 150 | 135 | 12 | L2 |
PM100CL1A060 |
600 | 100 | 1.65 | 0.038 | 200 | 135 | 12 | LI |
PM100CL1B060 |
600 | 100 | 1.65 | 0.038 | 200 | 135 | 12 | L2 |
PM100RL1A060 |
600 | 100 | 1.65 | 0.038 | 200 | 135 | 12 | LI |
PM100RL1B060 |
600 | 100 | 1.65 | 0.038 | 200 | 135 | 12 | L2 |
PM150CL1A060 |
600 | 150 | 1.65 | 0.038 | 300 | 135 | 12 | LI |
PM150CL1B060 |
600 | 150 | 1.65 | 0.038 | 300 | 135 | 12 | L2 |
PM150RL1A060 |
600 | 150 | 1.65 | 0.038 | 300 | 135 | 12 | LI |
PM150RL1B060 |
600 | 150 | 1.65 | 0.038 | 300 | 135 | 12 | L2 |
PM200CL1A060 |
600 | 200 | 1.65 | 0.023 | 400 | 135 | 12 | L3 |
PM200RL1A060 |
600 | 200 | 1.65 | 0.023 | 400 | 135 | 12 | L3 |
PM300CL1A060 |
600 | 300 | 1.65 | 0.023 | 600 | 135 | 12 | L3 |
PM300RL1A060 |
600 | 300 | 1.65 | 0.023 | 600 | 135 | 12 | L3 |
1200 V IPM (L1-Series) | ||||||||
PM25CL1A120 |
1200 | 25 | 1.55 | 0.038 | 50 | 135 | 12 | LI |
PM25CL1B120 |
1200 | 25 | 1.55 | 0.038 | 50 | 135 | 12 | L2 |
PM25RL1A120 |
1200 | 25 | 1.55 | 0.038 | 50 | 135 | 12 | LI |
PM25RL1B120 |
1200 | 25 | 1.55 | 0.038 | 50 | 135 | 12 | L2 |
PM25RL1C120 |
1200 | 25 | 1.55 | 0.085 | 50 | 135 | 12 | L5 |
PM50CL1A120 |
1200 | 50 | 1.55 | 0.038 | 100 | 135 | 12 | LI |
PM50CL1B120 |
1200 | 50 | 1.55 | 0.038 | 100 | 135 | 12 | L2 |
PM50RL1A120 |
1200 | 50 | 1.55 | 0.038 | 100 | 135 | 12 | LI |
PM50RL1B120 |
1200 | 50 | 1.55 | 0.038 | 100 | 135 | 12 | L2 |
PM75CL1A120 |
1200 | 75 | 1.55 | 0.038 | 150 | 135 | 12 | LI |
PM75CL1B120 |
1200 | 75 | 1.55 | 0.038 | 150 | 135 | 12 | L2 |
PM75RL1A120 |
1200 | 75 | 1.55 | 0.038 | 150 | 135 | 12 | LI |
PM75RL1B120 |
1200 | 75 | 1.55 | 0.038 | 150 | 135 | 12 | L2 |
PM100CL1A120 |
1200 | 100 | 1.55 | 0.023 | 200 | 135 | 12 | L3 |
PM100RL1A120 |
1200 | 100 | 1.55 | 0.023 | 200 | 135 | 12 | L3 |
PM150CL1A120 |
1200 | 150 | 1.55 | 0.027 | 300 | 135 | 12 | L3 |
PM150RL1A120 |
1200 | 150 | 1.55 | 0.027 | 300 | 135 | 12 | L3 |
600 V IPM (S1-Series) | ||||||||
PM50CS1D060 |
600 | 50 | 1.80 | 0.046 | 75 | 135 | 12 | S1 |
PM75CS1D060 |
600 | 75 | 1.80 | 0.046 | 112 | 135 | 12 | S1 |
PM100CS1D060 |
600 | 100 | 1.80 | 0.046 | 150 | 135 | 12 | S1 |
PM150CS1D060 |
600 | 150 | 1.80 | 0.046 | 225 | 135 | 12 | S1 |
PM200CS1D060 |
600 | 200 | 1.90 | 0.046 | 300 | 135 | 12 | S1 |
1200 V IPM (S1-Series) | ||||||||
PM25CS1D120 |
1200 | 25 | 1.65 | 0.046 | 38 | 135 | 12 | S1 |
PM50CS1D120 |
1200 | 50 | 1.65 | 0.046 | 75 | 135 | 12 | S1 |
PM75CS1D120 |
1200 | 75 | 1.65 | 0.046 | 112 | 135 | 12 | S1 |
PM100CS1D120 |
1200 | 100 | 1.65 | 0.046 | 150 | 135 | 12 | S1 |
Casing L1
|
Casing L2
|
![]() |
![]() |
Casing L3
|
Casing L5
|
![]() |
![]() |
Casing S1
|
|
![]() |
