Fabricant: Mitsubishi

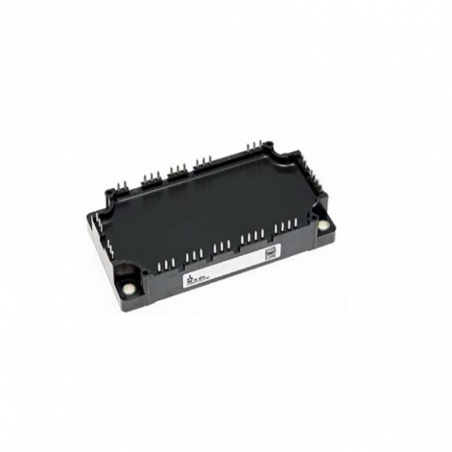

6 Génération de modules IGBT -Seria NX

Technical Dta
- 6th IGBT generation with chips made in CSTBT technology
- 1200V Modules: Vce(sat)=1,7V @ Tj=125°C; wide range of safe operation under Vcc=900V
- 1700V Modules: Vce(sat)=2,2V @ Tj=125°C; wide range of safe operation under Vcc=1200V
- Short circuit resistance longer then 10μs and great performance with parallel operation
- Integrated 6th generation backward diode with positive temperature coefficient
- Tj(max)=175°C
- Large variety of pin and screw connectors
- UL certificate
- RoHS compatible

Aplication:
- Motor drives
- Photovoltaic cell inverters
- UPS emergency power supplies

Identical dimensions for NX series

IGBT 6TH GENERATION MODULES - NX SERIES
CSTBT technology impovement

IGBT 6TH GENERATION MODULES - NX SERIES

IGBT 6th generation modules -NX series
Type Maximum parameters Vce(sat) Casing
Vces
[V]
Ic
[A]
Pt
[W]
@ Tj=25°C
[V]
1200 V

CM35MXA-24S

1200 35 355 1,70 NX1

CM50MXA-24S

1200 50 425 1,70 NX1

CM75MXA-24S

1200 75 600 1,70 NX1

CM100MXA-24S

1200 100 750 1,70 NX1

CM75RX-24S

1200 75 600 1,70 NX2

CM100RX-24S

1200 100 750 1,70 NX2

CM150RX-24S

1200 150 1150 1,70 NX2

CM75TX-24S

1200 75 600 1,70 NX1

CM100TX-24S

1200 100 750 1,70 NX1

CM150TX-24S

1200 150 1150 1,70 NX1

CM200DX-24S

1200 200 1500 1,70 NX3

CM300DX-24S

1200 300 2270 1,70 NX3

CM450DX-24S

1200 450 3405 1,70 NX3

CM600DXL-24S

1200 600 4500 1,70 NX4

CM1000DXL-24S

1200 1000 7500 1,70 NX4


Casing NX1

IGBT 6TH GENERATION MODULES - NX SERIES - Casing NX1
Casing NX2

IGBT 6TH GENERATION MODULES - NX SERIES - Casing NX1
Casing NX3

IGBT 6TH GENERATION MODULES - NX SERIES - Casing NX3
Casing NX4

IGBT 6TH GENERATION MODULES - NX SERIES - Casing NX4
Symbol Electrical scheme
D IGBT 6TH GENERATION MODULES - NX SERIES - electrical scheme D
M IGBT 6TH GENERATION MODULES - NX SERIES - electrical scheme M
Symbol Electrical scheme
R IGBT 6TH GENERATION MODULES - NX SERIES - electrical scheme - R
T IGBT 6TH GENERATION MODULES - NX SERIES - electrical scheme T
