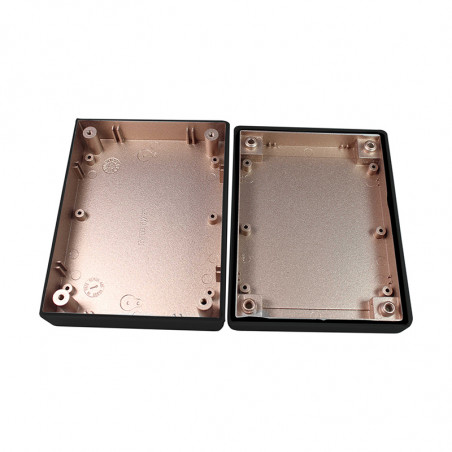

Boîtiers multifonctions de la série 7000 - RFI blindé

CamdenBoss’ 7000 series enclosures are designed to house a variety of electrical applications such as handheld electronics, desktop equipment and wall mountable IoT devices. The ABS enclosure is molded from UL94-V0 material. Available in a choice of two colours and nine different sizes, the 7000 series enclosure can be purchased with a selection of different options such as; an RFI shielded version, with a gasket, with both RFI and a gasket or just the plain enclosure as standard. Designed to meet IP54 as standard or designed to meet IP65 with the gasket kit.

Functional yet modern design in nine different sizes with anti-scratch finish. RFI wall mount options available.

• Lid and base moulded in ABS
• Lid mounted by four M3 machine screws
• Plastic screw covers for aesthetic appearance
• Fine texture anti-scratch finish
• Recesses in lid and base designed to accept membrane keypads or overlays
• Integral mounting guides in lid and base for vertical PCB mounting
• PCB pillars in lid and base
• Surface mountable via moulded fixing points or wallmounting kit (optional)
• Can be supplied with optional waterproof gasket
• Can be supplied with optional waterproof gasket and RFI shielding
• 7000 series has been designed to meet the requirements of IP54 or additionally, IP65 with the gasket accessory

Dimensions

• CRDCB0001 90x55x25mm
• CRDCB0002 90x55x40mm
• CRDCB0003 110x85x35mm
• CRDCB0004 127x75x30mm
• CRDCB0005 127x75x45mm
• CRDCB0006 145x90x45mm
• CRDCB0007 190x120x60mm
• CRDCB0008 220x145x50mm
• CRDCB0009 220x145x80mm

Specification

• Materials Lid, base and screw covers: ABS, UL94-V0
• Operating temperature: -20°C - 80°C
• Protection class 7000 series has been designed to meet the requirements of IP54 or additionally, IP65 with the gasket accessory
• Standard unit includes Base and lid
• 4x M3 machine screws (torque 0.5 Nm)
• 4x screw covers
• Options Wall mounting kit
• IP65 gasket kits
• RFI screening
