Générateurs PTG

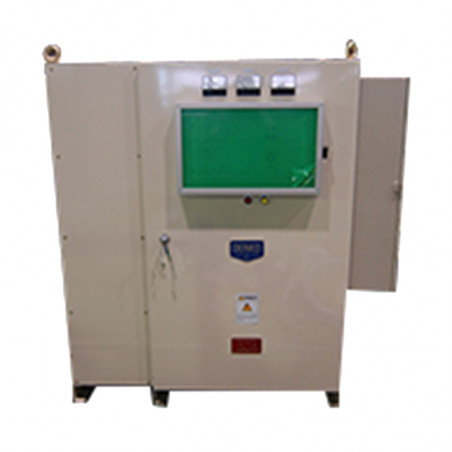

Transistor Generators - PTG type

  • Output power up to 1MW
  • Frequency up to 80kHz

These are compact, modern products with very high durability and reliability of operation. The generator system itself works on the basis of a current inverter and is powered by a thyristor three-phase voltage regulator. The generator is a full-bridge inverter built with IGBT type transistors whose load is a parallel resonant circuit. Switching on the generator does not require a starting device, and the regulator operates because of the voltage or current or power settings.

generator
Power Source: 1. Short circuit breaker, 2. AC filter, 3. Electromagnetic contactor. Rectifier: 4. Thyristor rectifier, 5. Diode, 6. DC reactor. Oscillator: 7. Crowbar circuit, 8. Inverter bridge. Matching network: 9. Resonance capacitor, 10. Transformer, 11. Heating coil.

Specifications 10/15kW 20/30kW 40/50kW 100kW 150kW 200kW 250kW
Input Voltage
[V]		 200 400 400 400 400 400 400
Output Frequency
[kHz]		 0,5÷30 0,5÷30 0,5÷30 0,5÷80 0,5÷80 0,5÷80 0,5÷80
Input Capacity
[kVA]		 14/20 28/40 55/65 130 195 260 330
Cooling Capacity
[l/min]		 10 15 20 40 50 60 70
External Dimensions
[mm]		 W: 600
D: 500
H: 1275		 W: 600
D: 500
H: 1275		 W: 600
D: 500
H: 1900		 W: 600
D: 500
H: 2100		 W: 1400
D: 800
H: 2100		 W: 1400
D: 800
H: 2100		 W: 1400
D: 800
H: 2100
Weight
[kg]		 300 300 500 600 800 1000 1200
300kW 400kW 500kW 600kW 700kW 800kW 1000kW
Input Voltage
[V]		 400 400 400 400 400 400 400
Output Frequency
[kHz]		 0,3÷80 0,3÷80 0,3÷50 0,3÷20 0,3÷20 0,3÷20 0,3÷20
Input Capacity
[kVA]		 390 560 700 840 980 1120 1400
Cooling Capacity
[l/min]		 80 100 110 120 130 140 150
External Dimensions
[mm]		 W: 2000
D: 800
H: 2100		 W: 2400
D: 800
H: 2100		 W: 2400
D: 500
H: 2100		 W: 3000
D: 800
H: 2100		 W: 3000
D: 800
H: 2100		 W: 3000
D: 1000
H: 2100		 W: 3000
D: 1000
H: 2100
Weight
[kg]		 1400 1600 1800 2000 2000 2500 2500
