Générateurs de chauffage par induction: puissance 25-250 kW, fréquence 50-600 kHz

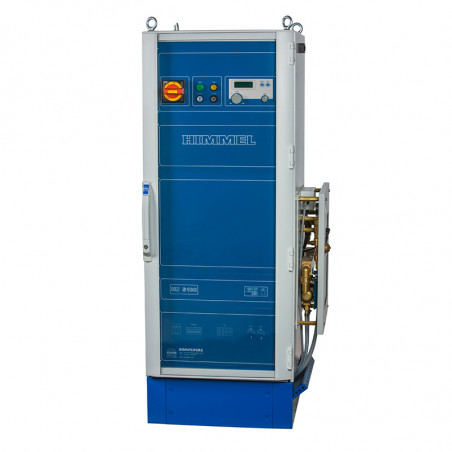

Induction Heating Generators - HUS Series

Induction Heating Generators - HUS Series are devices which provide precise and repeatable heating by means of the induction phenomenon. They simultaneously provide high efficiency, reliability and high cost effectiveness. The generators have microprocessor control and can be easily integrated into production processes.

Model
HF-Power [kW]
Frequency [kHz]
Mains Voltage [V]
Mains Power [kVA]
HU S-25
25
50-150 / 100-300 / 200-600
3x400
26
HU S-40
40
50-150 / 100-300 / 200-600
3x400
42
HU S-50
50
50-150 / 100-300 / 200-600
3x400
53
HU S-75
75
50-150 / 100-300 / 200-600
3x400
79
HU S-100
100
50-150 / 100-300 / 200-600
3x400
105
HU S-125
125
50-150 / 100-300 / 200-600
3x400
131
HU S-150
150
50-150 / 100-300 / 200-600
3x400
157
HU S-175
175
50-150 / 100-300 / 200-600
3x400
184
HU S-200
200
50-150 / 100-300 / 200-600
3x400
210
HU S-250
250
50-150 / 100-300 / 200-600
3x400
263

For more technical information, please refer to the data sheet under the " Downloads " tab.



Advantages:

  • High efficiency
  • High reliability
  • Reproducibility of all parameters
  • Selective heating
  • Designed for 100% duty cycle
  • Easy integration in production processes
  • Immediate readiness
  • High cost effectiveness
  • No need for demineralized cooling water

Flexibility:

  • Large spectrum of applications
  • Free programming
  • External heating head with compact design
  • Optional second switchable heating head
  • Connection with flexible cables
  • Interface for external control
  • Profibus, Profinet optional
  • Other interfaces on request
  • Optional connection with pyrometer

Applications:

Brazing, soldering, hardening, shrinkage, pre-heating, annealing, smelting, drying, tempering, forging, sintering, sealing.
