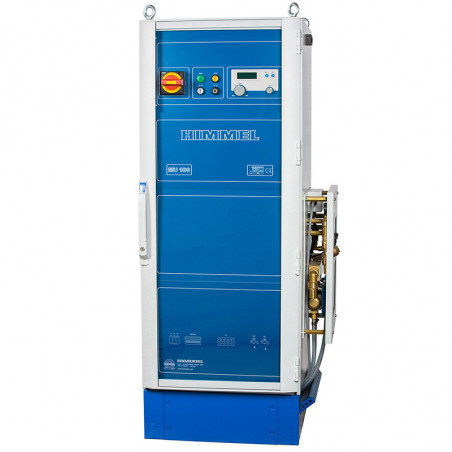

Générateur de chauffage par induction MU-250
  • Générateur de chauffage par induction MU-250

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Himmelwerk

Générateur de chauffage par induction MU-250

  • MU-250
  • source de courant 400 V, 3ph
  • La fréquence 8 - 20 kHz
  • Puissance d'entrée 278 kVA
  • Puissance de sortie 250 kW

Induction heating generator MU-250

Induction heating generators - MU Series are the standard in applications that heat deeper areas of workpieces. They simultaneously provide high performance, reliability and high cost effectiveness. The generators have microprocessor control and can be easily integrated into production processes.

Advantages:

  • High efficiency
  • High reliability
  • Reproducibility of all parameters
  • Selective heating
  • Designed for 100% duty cycle
  • Easy integration in production processes
  • Immediate readiness
  • High cost effectiveness
  • No need for demineralized cooling water

Flexibility:

  • Large spectrum of applications
  • Free programming
  • External heating head with compact design
  • Optional second switchable heating head
  • Connection with flexible cables
  • Interface for external control
  • Profibus, Profinet optional
  • Other interfaces on request
  • Optional connection with pyrometer

Applications:

Brazing, soldering, hardening, shrinkage, pre-heating, annealing, smelting, drying, tempering, forging, sintering, sealing.

For more technical information, please refer to the data sheet under the "Downloads" tab.
