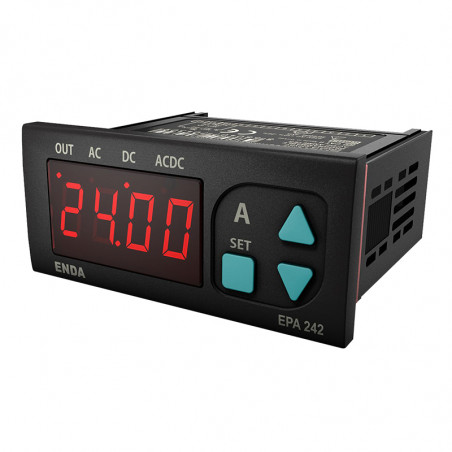

AMMETER PANNEAU EPA242
  • AMMETER PANNEAU EPA242

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Sisel

AMMETER PANNEAU EPA242

  • 77 x 35mm sized.
  • 4 digits display.
  • Easy to use with front panel keypad.
  • 5A or 60 mV , CT20/30 current transformer or 60 mV input feature (Please Specify at Order).
  • Programmable scale range between 5A and 9999A.
  • Multifunctional alarm output (NO+NC) for upper and lower limits.
  • Communication feature over isolated RS485, using ModBus RTU protocol (Optional).
  • Measuring type can be selected as AC, DC or true RMS.
  • Keylock feature.
  • 0-20mA, 4-20mA, 0-10V or 1-5V output selection (Specified devices with output type as ‘A' only).
  • CE marked according to European Norms.

Available models:

Model Supply voltage Input Output Modbus Dimensions
EPA242-230  230VAC 5A / 60mV - - 35x77 mm
EPA242-110 110VAC
EPA242-24 24VAC
EPA242-SM 9-30VDC / 7-24
VAC
EPA242-230-RS 230VAC RS485
EPA242-110-RS 110VAC
EPA242-24-RS 24VAC
EPA242-SM-RS 9-30VDC / 7-24
VAC
EPA242-R-230 230VAC 8A
NO+NC		 -
EPA242-R-110 110VAC
EPA242-R-24 24VAC
EPA242-R-SM 9-30VDC / 7-24
VAC
EPA242-R-230-RS 230VAC RS485
EPA242-R-110-RS 110VAC
EPA242-R-24-RS 24VAC
EPA242-R-SM-RS 9-30VDC / 7-24
VAC
EPA242-A-230 230VAC 0..20mA,
4..20mA,
0..10V,
1..5V		 -
EPA242-A-110 110VAC
EPA242-A-24 24VAC
EPA242-A-SM 9-30VDC / 7-24
VAC
EPA242-A-230-AS 230VAC RS485
EPA242-A-110-AS 110VAC
EPA242-A-24-AS 24VAC
EPA242-A-SM-AS 9-30VDC / 7-24
VAC

Example connection diagram:



DOWNLOAD - PDF
