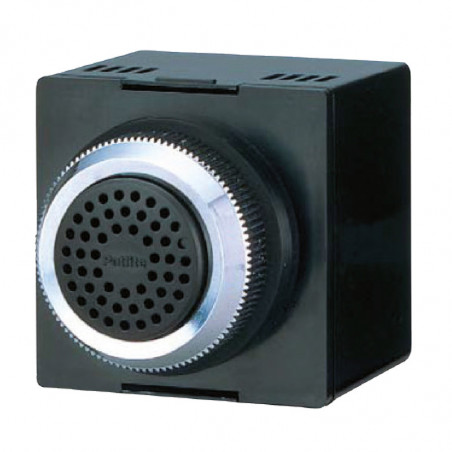

Fabricant: Patlite

BM - Boucz industriel

Technical data

· Built-in Alarm: Audible sound up to 90dB at 1m.
· Sound Pattern: Selectable 2 patterns of alarm sound.
· Body: Compact and light weight (100g).
· NPN/PNP Compatible: 24V type only.
· CE Compliant: For 24V AC/DC only



SIZE - 30mm diameter (front)
- 50mm square (back)
INPUT VOLTAGES - 24V AC/DC
- 100V AC
- 220V AC
AUDIBLE STYLES - Two selectable, distinctive alarm sounds
MOUNTING - Panel Mount
- Indoor Only
BODY STYLE/COLORS - Body: Black
- Mounting Ring: Chrome
- Panel: ABS Plastic
VOLUME - Approx. 75dB at 1 meter (24V)
- Approx. 80dB at 1 meter (120V)
- Volume is not adjustable
SOUND STORAGE Two alarm sounds:
- Rapid, alternating two-tone
- Rapid, intermittent single tone
PROTECTION RATINGS - IP-34
OPTION BRACKET - Dry contact closure such as switches or relay contacts
- NPN/PNP Compatible for 24V type only
PLAYBACK OPTIONS - Sound only plays during contact closure
- Sound stops when contact is Open

  Power supply Power consumption Operation temperature Weight
BM-202D 24VDC 0,4W -10...+60°C 0,1kg
