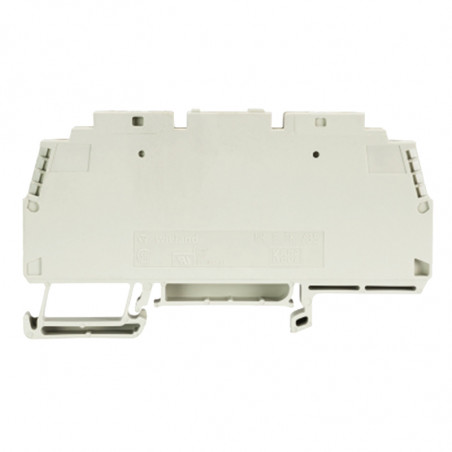

Connecteurs pour circuits de transformateur

Serial measuring joints


  WK6 TK/35
  cord wire V A
EN 60 947-7-1/DIN VDE 0611 T1
0,5-6 mm2
 0,5-10 mm2 400V/6kV/3 32
Data UL
No. 20-8 AWG
   600 V 45
Data CSA
No. 20-8 AWG
   300 V 45
Construction width     insulation length
8 mm

Certificates
  Typ Nr katalogowy Opak.
Measure joint serial joint
WK6TK/35
 56.106.0553.0
Equipment

1. Assembly bus 35, Assembly bus 7,5
 L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, Assembly bus15
 L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus 32, bus G
 L = 2m
2. Closing slat
 width.10mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
 width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
 width. 7,5 mm
3. Blokada połączenia
SPWK6TK
 05.563.5453.0
4. Suwak zwierający izolowany

  2-pole
WSWK6TK-2
 Z7.212.2227.0
  3-pole
WSWK6TK-3
 Z7.212.2327.0
  4-pole
WSWK6TK-4
 Z7.212.2427.0
5. short circuit switch, E-Cu

insulated
 2-pole
WBWK6TK-2
 Z7.212.1227.0
  3-pole
WBWK6TK-3
 Z7.212.1327.0
  4-pole
IVBWK6TK-4
 Z7.212.1427.0
  5-pole
WBWK6TK-5
 Z7.212.1527.0
  10-pole
WBWK6TK-10
 Z7.212.2027.0
6. socket
 colour: grey
SB 4 grey
 05.511.2953.0
  colour:violet
SB 4 violet
 05.511.2953.9
  colour: green
SB 4 green
 05.511.2953.7
  colour: yellow
SB 4 yellow
 05.511.2953.8


  WK6 TK P3/35
  cord                 wire V A
EN 60 947-7-1/DIN VDE 0611 T1
 0,5 - 6 mm2     0,5-10 mm2 400V/6kV/3 32
Data UL
No. 20-8 AWG
 600 V 45
Data CSA
No. 20-8 AWG
 300 V 45
Construction width     insulation length
8 mm

Certificates
  Type catalogue number Opak.
Measure joint serial joint
WK6TKP3/35
 56.106.0653.0
Equipment

1. Assembly bus 35, Assembly bus 7,5
 L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, Assembly bus15
 L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus 32, bus G
 L = 2m
2. Closing slat
 width.10mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
 width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
 width. 7,5 mm
3. Connection blockade
SPWK6TK
 05.563.5453.0
4. Insulated slide

  2-pole
WSWK6TK-2
 Z7.212.2227.0
  3-pole
WSWK6TK-3
 Z7.212.2327.0
  4-pole
WSWK6TK-4
 Z7.212.2427.0
5. short circuit switch, E-Cu

insulated
 2-pole
IVBWK6TK-2
 Z7.212.1227.0
  3-pole
WBWK6TK-3
 Z7.212.1327.0
  4-pole
IVBWKBTK-4
 Z7.212.1427.0
  5-pole
IVBWK6TK-5
 Z7.212.1527.0
  10-pole
WBWK6TK-10
 Z7.212.2027.0
6. Socket
 colour: grey
SB 4 grey
 05.511.2953.0
  colour: violet
SB 4 violet
 05.511.2953.9
  colour: green
SB 4 green
 05.511.2953.7
  colour: yellow
SB 4 yellow
 05.511.2953.8

  Type Catalogue number Opak.
Measure joint serial joint
1. WE 1/4
 Z5.523.5753.0 100
Equipment
2. WK6TK/35
 56.106.0053.0
1. Assembly bus 35, Assembly bus 7,5
 L = 2 m
3. SB4GRAU
 Z5.523.5753.0 100
Assembly bus 35, Assembly bus15
 L = 2m
4. SBWKBTK
 05.563.5453.0
Assembly bus 32, bus G
 L = 2m
5. IVSWK6TK-2
 Z7.212.2227.0
2. Closing slat
 width.10mm
extra for one common point K
Closing slat TS 35 with screw
 width. 8 mm
6. IVBWK6TK-5
 Z7.212.1527.0
Closing slat TS 32 with screw
 width. 7,5 mm
3. connection blockade

4. insulated slide

  2-pole
  3-pole
  4-pole
5. short circuit switch, E-Cu

insulated
 2-pole
  3-pole
  4-pole
  5-pole
  10-pole
6. Socket
 colour: grey
  colour: violet
  colour: green
  colour: yellow
