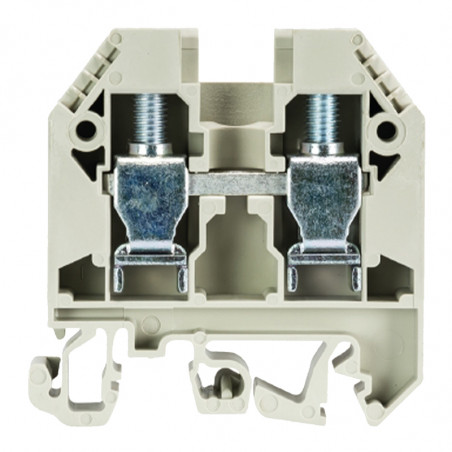

Connecteurs avec une pince à vis

Joints with screw clamp



  WK2,5/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-2,5 mm2
 0,5-4 mm2 800 V/8 kV/3 24
Data UL
No. 22-12 AWG
   600 V 20/30
Data CSA
No. 24-12
   600 V 25
Construction width.     insulation length
5 mmm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK 2,5/U
 57.503.0055.0 100
Throughout connector EEx 1
colour: blue.
WK 2,5/U blueieski
 57.503.0055.6 100
Throughout connector EEx e1)
colour: grey
WK 2,5/U21
 57.503.0055.0 100
Available colours
white, black, red, yellow, orange
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5 - 4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW 2,5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 - 4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK2,5-2
 Z7.280.2227.0 10

3-pole.
IVBWK2,5-3
 Z7.280.2327.0 10

do 12-pole.
IVBWK2,5-12
 Z7.280.3227.0 10
6. Single short circuit switch cover
description
AD VB 2,5 yellow
 04.326.2053.8 10
7. Separate plate
TS2.5 yellow
 07.311.2053.8 10
8. Protection tape
AD VB 5/10 P yellow
 04.342.3556.8 10
Protection tape
AD VB 5/4 yellow
 04.343.4756.8 10


  WK 4/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3   32
DataUL
No. 22-10 AWG 3)
   600 V 30/35
DataCSA
No. 20-10 AWG
   600 V 40
Construction width.     insulation length
6 mm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK4/U
 57.504.0055.0 100
Throughout connector EEx 1
colour: blue.
WK4/U blueieski
 57.504.0055.6 100
Throughout connector EEx e1)
colour: grey
WK4/U2'
 57.504.0055.0 100
Available colours
white, black, brown., red, green, yellow, orange.
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5-4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW2.5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 -4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
WBWK4-2
 Z7.281.1227.0 10

3-pole.
IVBWK4-3
 Z7.281.1327.0 10

do 12-pole.
WBWK4-12
 Z7.281.2227.0 10
6. Single short circuit switch cover
description
AD VB 4 yellow
 04.326.2153.8 10
7. Separate plate
TS 4 yellow
 07.311.2153.8 10
8. Protection tape
AD VB 6/1OP yellow
 04.342.3656.8 10
Protection tape
AD VB 6/4 yellow
 04.343.4856.8 10




  WK 6/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-6 mm2
 2,5-10 mm2 800V/8kV/3 41
DataUL
No. 22-8 AWG4)
 600 V 50/50
DataCSA
No. 20-8 AWG
   600 V 45
Construction width.     insulation length
8 mm
     11mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WK6/U
 57.506.0055.0 100
Throughout connector EEx 1
colour: blue.
WK6/U blueieski
 57.506.0055.6 100
Throughout connector EEx e1)
colour: grey
WK6/UZ|
 57.506.0055.0 100
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP6
 07.311.0255.0 10

colour: blue.
AP 6 blueieski
 07.311.0255.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW6
 07.311.1255.0 10

colour: blue.
TW 6 blueieski
 07.311.1255.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK6-2
 Z7.282.2227.0 10

3-pole.
IVBWK6-3
 Z7.282.2327.0 10

do 12-pole.
IVBWK6-12
 Z7.282.3227.0 10
6. Single short circuit switch cover
description
AD VB 6 yellow
 04.326.2253.8 10
7. Separate plate
TS 6 yellow
 07.311.2253.8 10
8. Protection tape
AD VB 8/10 P yellow
 04.342.3856.8 10
Protection tape
AD VB 8/4 yellow
 04.343.4956.8 10




  WK10/U
  cord wire/multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
2,5-10 mm2
 1,5-16 mm2 800V/8kV/3 57
DataUL
No. 16-6 AWG61
 600V 65/65
DataCSA
No. 16-6 AWG
   600 V 70
Construction width.     insulation length
10 mm
     13 mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WKN 10/U
 57.510.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 10/U blueieski
 57.510.0155.6 50
Throughout connector EEx e1)
colour: grey
WKN 10/U
 57.510.0155.0 50
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly  32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
APN10
 07.311.6655.0 10

colour: blue.
APN 10 blueieski
 07.311.6655.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TWN10
 07.311.7655.0 10

colour: blue.
TWN10 blueieski
 07.311.7655.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVB WKN 10-2
 Z7.283.2227.0 10

3-pole.
IVB WKN 10-3
 Z7.283.2327.0 10

do 12-pole.
IVBWKN10-12
 Z7.283.3227.0 10
6. Single short circuit switch cover
description
ADVB10 yellow
 04.326.2353.8 10
7. Separate plate
TS10 yellow
 07.311.2353.8 10
8. Protection tape
AD VB 10/10 P yellow
 04.342.4056.8 10
Protection tape
AD VB 10/4 yellow
 04.343.5056.8 10



Connectors WKN




  WKN16/U
  cord wire/ multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
4-16 mm2
 1,5-25 mm2 800V/8kV/3 76
DataUL
No. 12-4AWG
   600 V 85/90
DataCSA
No. 14-4 AWG
 600 V 95
Construction width.     insulation length
12 mm
     15mm
Certyficates
  Type Catalogue number Package
Throughout connector
colour: grey
WKN 16/U
 57.516.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 16/U blueieski
 57.516.0155.6 50
Throughout connector EEx e*)1)
colour: grey
WKN 16/U 2)
 57.516.0155.0 50

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.
APN16
 07.311.6755.0 10

colour: grey
APN16 blueieski
 07.311.6755.6 10
4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN16
 07.311.7755.0 10

colour: grey
TWN16 blueieski
 07.311.7755.6 1
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVBWKN16-2
 Z7.284.2227.0 10

do 12-pole.
IVBWKN16-3
 Z7.284.2327.0 10

IVB WKN 16-12
 Z7.284.3227.0 10
6. Single short circuit switch cover

7. Separate plate
TSN 16 yellow
 07.311.8453.8 10
Płytka rozdzielająca z osłoną
TSN AD 16 yellow
 07.311.8553.8 10
8. Protection tape

Protection tape
AD VB12/4 yellow
 04.343.5156.8 10


  Closed execution
WKN 35/U
  cord multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
10-35 mm2
 10-50 mm2 800V/8kV/3 125
DataUL
No. 10-2AWG
   600 V 95/95
DataCSA
No. 12-2 AWG
   600 V 110
Construction width.     insulation length
16 mm
     18 mm
Certificates
<td colspan="2" hei
  Type Catalogue number Package
Throughout connector
colour: grey
WKN35/U
 57.535.0155.0 20
Throughout connector EEx 1
colour: blue.
WKN 35/U blueieski
 57.535.0155.6 20
Throughout connector EEx e*)1)
colour: grey
WKN35/U2)
 57.535.0155.0 20

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.


colour: grey

4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN35
 07.311.7855.0 10

colour: grey
TWN 35 blueieski
 07.311.7855.6 10
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVB WKN 35-2
 AD VB 35 yellow 5

d 12-pole.
IVB WKN 35-3
 Z7.285.2327.0 5

IVB WKN 35-12
 Z7.285.3227.0 5
6. Single short circuit switch cover
AD VB 35 yellow
 04.326.2553.8 10
7. Separate plate

Separate plate

8. Protection tape

Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

Joints with screw clamp



  WK2,5/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-2,5 mm2
 0,5-4 mm2 800 V/8 kV/3 24
Data UL
No. 22-12 AWG
   600 V 20/30
Data CSA
No. 24-12
   600 V 25
Construction width.     insulation length
5 mmm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK 2,5/U
 57.503.0055.0 100
Throughout connector EEx 1
colour: blue.
WK 2,5/U blueieski
 57.503.0055.6 100
Throughout connector EEx e1)
colour: grey
WK 2,5/U21
 57.503.0055.0 100
Available colours
white, black, red, yellow, orange
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5 - 4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW 2,5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 - 4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK2,5-2
 Z7.280.2227.0 10

3-pole.
IVBWK2,5-3
 Z7.280.2327.0 10

do 12-pole.
IVBWK2,5-12
 Z7.280.3227.0 10
6. Single short circuit switch cover
description
AD VB 2,5 yellow
 04.326.2053.8 10
7. Separate plate
TS2.5 yellow
 07.311.2053.8 10
8. Protection tape
AD VB 5/10 P yellow
 04.342.3556.8 10
Protection tape
AD VB 5/4 yellow
 04.343.4756.8 10


  WK 4/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3   32
DataUL
No. 22-10 AWG 3)
   600 V 30/35
DataCSA
No. 20-10 AWG
   600 V 40
Construction width.     insulation length
6 mm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK4/U
 57.504.0055.0 100
Throughout connector EEx 1
colour: blue.
WK4/U blueieski
 57.504.0055.6 100
Throughout connector EEx e1)
colour: grey
WK4/U2'
 57.504.0055.0 100
Available colours
white, black, brown., red, green, yellow, orange.
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5-4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW2.5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 -4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
WBWK4-2
 Z7.281.1227.0 10

3-pole.
IVBWK4-3
 Z7.281.1327.0 10

do 12-pole.
WBWK4-12
 Z7.281.2227.0 10
6. Single short circuit switch cover
description
AD VB 4 yellow
 04.326.2153.8 10
7. Separate plate
TS 4 yellow
 07.311.2153.8 10
8. Protection tape
AD VB 6/1OP yellow
 04.342.3656.8 10
Protection tape
AD VB 6/4 yellow
 04.343.4856.8 10




  WK 6/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-6 mm2
 2,5-10 mm2 800V/8kV/3 41
DataUL
No. 22-8 AWG4)
 600 V 50/50
DataCSA
No. 20-8 AWG
   600 V 45
Construction width.     insulation length
8 mm
     11mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WK6/U
 57.506.0055.0 100
Throughout connector EEx 1
colour: blue.
WK6/U blueieski
 57.506.0055.6 100
Throughout connector EEx e1)
colour: grey
WK6/UZ|
 57.506.0055.0 100
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP6
 07.311.0255.0 10

colour: blue.
AP 6 blueieski
 07.311.0255.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW6
 07.311.1255.0 10

colour: blue.
TW 6 blueieski
 07.311.1255.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK6-2
 Z7.282.2227.0 10

3-pole.
IVBWK6-3
 Z7.282.2327.0 10

do 12-pole.
IVBWK6-12
 Z7.282.3227.0 10
6. Single short circuit switch cover
description
AD VB 6 yellow
 04.326.2253.8 10
7. Separate plate
TS 6 yellow
 07.311.2253.8 10
8. Protection tape
AD VB 8/10 P yellow
 04.342.3856.8 10
Protection tape
AD VB 8/4 yellow
 04.343.4956.8 10




  WK10/U
  cord wire/multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
2,5-10 mm2
 1,5-16 mm2 800V/8kV/3 57
DataUL
No. 16-6 AWG61
 600V 65/65
DataCSA
No. 16-6 AWG
   600 V 70
Construction width.     insulation length
10 mm
     13 mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WKN 10/U
 57.510.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 10/U blueieski
 57.510.0155.6 50
Throughout connector EEx e1)
colour: grey
WKN 10/U
 57.510.0155.0 50
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly  32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
APN10
 07.311.6655.0 10

colour: blue.
APN 10 blueieski
 07.311.6655.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TWN10
 07.311.7655.0 10

colour: blue.
TWN10 blueieski
 07.311.7655.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVB WKN 10-2
 Z7.283.2227.0 10

3-pole.
IVB WKN 10-3
 Z7.283.2327.0 10

do 12-pole.
IVBWKN10-12
 Z7.283.3227.0 10
6. Single short circuit switch cover
description
ADVB10 yellow
 04.326.2353.8 10
7. Separate plate
TS10 yellow
 07.311.2353.8 10
8. Protection tape
AD VB 10/10 P yellow
 04.342.4056.8 10
Protection tape
AD VB 10/4 yellow
 04.343.5056.8 10



Connectors WKN




  WKN16/U
  cord wire/ multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
4-16 mm2
 1,5-25 mm2 800V/8kV/3 76
DataUL
No. 12-4AWG
   600 V 85/90
DataCSA
No. 14-4 AWG
 600 V 95
Construction width.     insulation length
12 mm
     15mm
Certyficates
  Type Catalogue number Package
Throughout connector
colour: grey
WKN 16/U
 57.516.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 16/U blueieski
 57.516.0155.6 50
Throughout connector EEx e*)1)
colour: grey
WKN 16/U 2)
 57.516.0155.0 50

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.
APN16
 07.311.6755.0 10

colour: grey
APN16 blueieski
 07.311.6755.6 10
4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN16
 07.311.7755.0 10

colour: grey
TWN16 blueieski
 07.311.7755.6 1
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVBWKN16-2
 Z7.284.2227.0 10

do 12-pole.
IVBWKN16-3
 Z7.284.2327.0 10

IVB WKN 16-12
 Z7.284.3227.0 10
6. Single short circuit switch cover

7. Separate plate
TSN 16 yellow
 07.311.8453.8 10
Płytka rozdzielająca z osłoną
TSN AD 16 yellow
 07.311.8553.8 10
8. Protection tape

Protection tape
AD VB12/4 yellow
 04.343.5156.8 10


  Closed execution
WKN 35/U
  cord multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
10-35 mm2
 10-50 mm2 800V/8kV/3 125
DataUL
No. 10-2AWG
   600 V 95/95
DataCSA
No. 12-2 AWG
   600 V 110
Construction width.     insulation length
16 mm
     18 mm
Certificates
<td colspan="2" hei
  Type Catalogue number Package
Throughout connector
colour: grey
WKN35/U
 57.535.0155.0 20
Throughout connector EEx 1
colour: blue.
WKN 35/U blueieski
 57.535.0155.6 20
Throughout connector EEx e*)1)
colour: grey
WKN35/U2)
 57.535.0155.0 20

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.


colour: grey

4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN35
 07.311.7855.0 10

colour: grey
TWN 35 blueieski
 07.311.7855.6 10
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVB WKN 35-2
 AD VB 35 yellow 5

d 12-pole.
IVB WKN 35-3
 Z7.285.2327.0 5

IVB WKN 35-12
 Z7.285.3227.0 5
6. Single short circuit switch cover
AD VB 35 yellow
 04.326.2553.8 10
7. Separate plate

Separate plate

8. Protection tape

Moins
Lire la suite
Commentaires (0)
