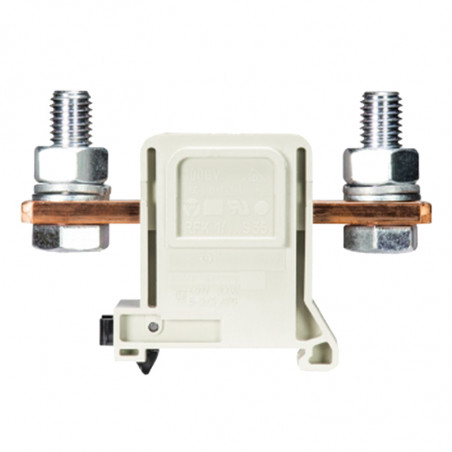

Connecteurs à fort courant
  • Connecteurs à fort courant

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Throughout connector up t 240 mm2

  RFK 1/95... S35 RFK 1/95... PA
  cord V A cord V A
DIN VDE 0611 Teil 1/EN 60947-7-1
16-95 mm2
1000 V 250
16-95 mm2
1000 V 250
Data UL
6-3/0 AWG
600 V 200
6-3/0 AWG
600 V 200
Data CSA
6-3/0 AWG
600 V 200
6-3/0 AWG
600 V 200
Construction width     insulation length
32 mm
  27 mm
32 mm
  27 mm
Certificates
  Type Catalogue number Package. Type Catalogue number Package.
Execution
colour: grey
F
RFK1/95 F S 35
56.395.0055.0 10
RFK 1/95 F PA
59.195.0055.0 10
colour: grey
K
RFK1/95 K S 35
56.395.0155.0 10
RFK 1/95 K PA
59.195.0155.0 10
colour: grey
FK
RFK 1/95 FK S 35
56.395.0255.0 10
RFK 1/95 FK PA
59.195.0255.0 10
colour: grey
FM
RFK 1/95 FM S 35
56.395.1055.0 10
RFK 1/95 FM PA
59.195.1055.0 10
colour: grey
FMK
RFK 1/95 FMK S 35
56.395.1255.0 10
RFK 1/95 FMK PA
59.195.1255.0 10


Equipment

1. Assembly bus35,
Assembly bus 7,5 mm
L = 2m
35x27x7,5 EN 50022
98.300.0000.0 1
Assembly bus35, Assembly bus 15 mm
L = 2m
35x24x15 EN 50022
98.360.0000.0 1
Assembly bus 32,
bus G
L = 2m
9006 EN 50035 6-32
98.190.0000.0 1
2. Closing slat
width.10 mm
WE2/U
Z5.523.5653.0 100
WE2/U
Z5.523.5653.0 100
Closing slat TS35
with screw
width. 8 mm
9708/2 S35
Z5.522.8553.0 100
9708/2 S35
Z5.522.8553.0 100
Closing slat TS32
with screw
width7,5 mm
9708
Z5.522.7053.0 100
9708
Z5.522.7053.0 100
3. Cover RFK1/...
colour: yellow   Z7.409.5753.0 10   Z7.409.5853.0 10
4. Separate plate
2,8 mm
TE/RFK1/95
07.340.0353.0 50
TE/RFK 1/95
07.340.0353.0 50
5. Screw to plate assembly

AM 5x12 DIN 933
06.065.0021.0 100
6. Connection buses for connector buses
z E-Cu
  for2 connectors
VB RFK 1/95/2/32
07.205.1227.0 20
VB RFK 1/95/2/32
07.205.1227.0 20
  for3 connectors
VB RFK 1/95/3/32
07.205.1327.0 10
VB RFK 1/95/3/32
07.205.1327.0 10
  for4 connectors
VB RFK 1/95/4/32
07.205.1427.0 10
VB RFK 1/95/4/32
07.205.1427.0 10

FUSE JOINT, TS 351TS 32


  RFK 1/150... S35
  cord V A
DIN VDE 0611 Teil 1/EN 60947-7-1
70-240 mm2  70-240 mm2
1000 V 335
Data UL
0 AWG-300MCM
600 V 275
Data CSA
0 AWG-300MCM
600 V 300
Construction width     insulation length
32 mm
  27 mm
Certificates

  Type Catalogue number Package.
Execution
colour: grey
F
colour: grey
K
RFK1/150 KS 35
56.397.0155.0
colour: grey
FK
RFK1/150 FKS 35
56.397.0255.0
colour: grey
FM
colour: grey
FMK
RFK 1/150 FMKS 35
56.397.1255.0


Equipment

1. Assembly bus35, Assembly bus 7,5 mm
L = 2m
35x27x7,5 EN 50022
98.300.0000.0 1
Assembly bus35, Assembly bus 15 mm
L = 2m
35x24x15 EN 50022
98 360.00000 1
Assembly bus 32, bus G
L = 2m
2. Closing slat
width.10 mm
WE2/U
Z5.523.5653.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
Z5.522.8553.0 100
Closing slat TS32 with screw
width 7,5 mm   Z5.522.7053.0 100
3. Cover RFK1/...
colour: yellow   Z7.409.5853.0 10
4. Separate plate
2,8 mm
TE/RFK1/150 -240 PA
07.340.1053.0 50
5. Screw to plate assembly

6. Connection buses for connector buses
z E-Cu
  for2 connectors
VB RFK 1/185/2
07.201.4227.0 10
  for3 connectors
VB RFK 1/185/3
07.201.4327.0 10
  for4 connectors
VB RFK 1/185/4
07.201.4427.0 10

  RFK 1/150... PA
  cord V A
DIN VDE 0611 Teil 1/EN 60947-7-1
70-240 mm2   70-240 mm2
1000 V 335
Data UL
0 AWG-300MCM
600 V 275
Data CSA
0 AWG-300MCM
600 V 300
Construction width     insulation length
32 mm
  27 mm
Certificates
  Type Catalogue number Package.
Execution
colour: grey
F
colour: grey
K
RFK 1/150 KPA
59.197.0155.0 10
colour: grey
FK
RFK 1/150 FK PA
59.197.0255.0 10
colour: grey
FM
colour: grey
FMK
RFK 1/150 FMK PA
59.197.1255.0 10


Equipment

1. Assembly bus35, Assembly bus 7,5 mm
L = 2m
Assembly bus35, Assembly bus 15 mm
L = 2m
9005 EN 50035 G-32
98.190.0000.0 1
Assembly bus 32, bus G
L = 2m
2. Closing slat
width.10 mm
WE2/U
Z5.523.5653.0 100
Closing slatTS35 with screw
width. 8 mm
9708/2 S 35
Z5.522.8553.0 100
Closing slat TS32 with screw
width 7,5 mm
9708
Z5.522.7053.0 100
3. Cover RFK1/...
colour: yellow   Z7.409.5853.0 10
4. Separate plate
2,8 mm
TE/RFK 1/150 - 240 PA
07.340.1053.0 50
5. Screw to plate assembly
AM 5x12 DIN 933
06.065.0021.0 100
6. Connection buses for connector buses
z E-Cu
  for2 connectors
VB RFK 1/185/2
07.201.4227.0 10
  for3 connectors
VB RFK 1/185/3
07.201.4327.0 10
  for4 connectors
VB RFK 1/185/4
07.201.4427.0 10
mm2 Type axb MI MII H L F E
95 F,K,FK,FM,FMK 5x18 M10 Ma 78 180 92 46
150 K, FK, FMK 6x26 M12 M10 85,5 200 92 46
Execution
F
K
FK
FM
FMK
