Fabricant: Flexelec

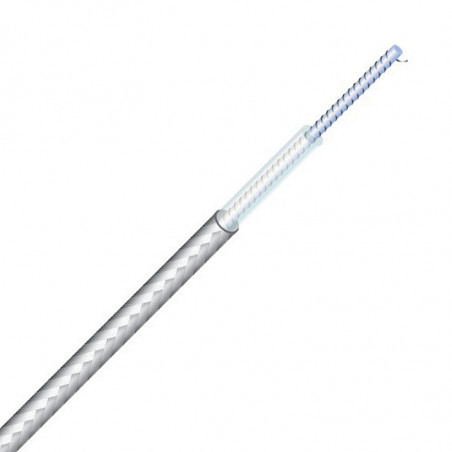

C1F Câbles - C1F / T - C1F / I

Aplications

C1F, C1F/T and C1F/I heating cords are mainly used in corrosive environments, or in machines requiring protection against freezing or temperature maintenance. To ensure that these heating cables elements enjoy a long service life, we recommend using a control device


Characterictics
  • UL Recognized cord on request.
  • C1F: fluoropolymer insulated cord.
  • C1F/T: fluoropolymer insulated cord with tinned copper braid for mechanical protection and earthing.
  • C1F/I: fluoropolymer insulated cord with stainless steel braid for mechanical protection and earthing.

PRODUCTS INSULATION CLASS
C1F CLASS 0 (single insualated)
CLASS III (if low voltage)
C1F/T – C1F/I CLASS I (earthing)

  C1P C1P/T - C1P/
Support Fibre glass
Ø 0.7 or Ø 1.1 mm
Heating wire nickel-copper or nickel-chrome
Insultaion Fluoropolymer
Diameter 1.7 to 2.1 mm 2.0 to 2.4 mm
Max. ohmic value 5000 Ω/m
Max. power 30 W/m
Max. voltage 600 V
Permissible surface temperature from - 70°C to + 200°C
Tolerances Resistance ± 10 %
Diameter + 0.2 /- 0.1 mm
