Fabricant: Celesco

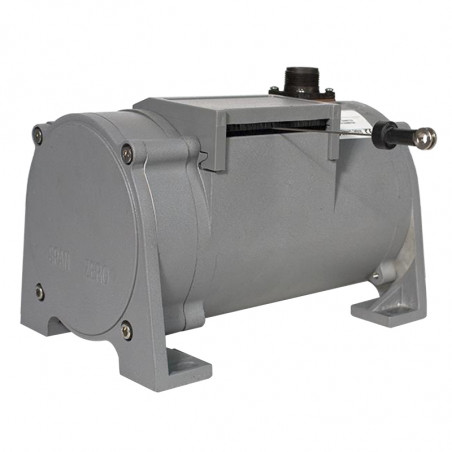

Relier les transducteurs de distance PT9000

PT9000  transducer group for industrial application(up to 13750 mm)- Measure range 13750 mm

- Compact casing
- for difficult production applications
- EX version available

Technical data
Group PT9101 PT9150 PT9232 PT9301 PT9420 PT9510 PT9CN PT9DN
Output Signal Options Potentiometer encoder RS232 Potentiometer and tachometer

 current voltage Canabus J1939 Device Net

Technical data
Measurement range [mm] 13750 13750 13750 13750 13750 13750 13750 13750
Accuracy 0,10% 0,02%...0,04% 0,10% 0,10% 0,12% 0,12% 0,010% 0,102%
Repeatability 0,02% 0,02% 0,02% 0,05% 0,05% 0,02% 0,02% -
Durability 250k...2,5 mln 5 mln 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 250k - 2,5Mln 250k...2,5 mln 250k...2,5 mln


Casing
Material Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel
Protection level IP67/68 IP65/67 IP67 IP67/68 IP67/68 IP65/67 IP67 IP67
Operation temperature -40...90°C -17...71°C -40...90°C -40...90°C -40...90°C -40...90°C -40...90°C -40...90°C
Vibrations Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max

Measurement cord
Noble steel covered with nylon. [inch] * ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034 ø 0,034
Noble steel ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047 ø 0,047
Thermoelastic plastic ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062 ø 0,062


Electrical connection
Tips for soldering - - - - - - - -
Wires - - - - - - - -
Cables 7,5m;3m cable
water proof		 7,5 m cable 7,5 m cable 7,5 m cable 7,5m;3m cable
water proof		 7,5m;3m cable
water proof		 - -
Plug Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6/18 pol.+
socket		 Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6 pol.+socket		 Micro plug 5pol.+
Micro plug 5pol.+
+ socket
(also 5 m cable)		 Micro plug 5pol.+
Micro plug 5pol.+
+ socket
(also 5 m cable)

Properties
  Integrated cable brush, cable breaking system.  Integrated cable brush, cable breaking system. Integrated cable brush, cable breaking system. Integrated cable brush, cable breaking system. EX version Integrated cable brush, cable breaking system. Integrated cable brush, cable breaking system. Zintegrowana
szczotka do kabla;
system hamowania
kabla		 Zintegrowana
szczotka do kabla;
system hamowania
kabla
*) 1 inch = 25,4 mm
