Fabricant: Celesco

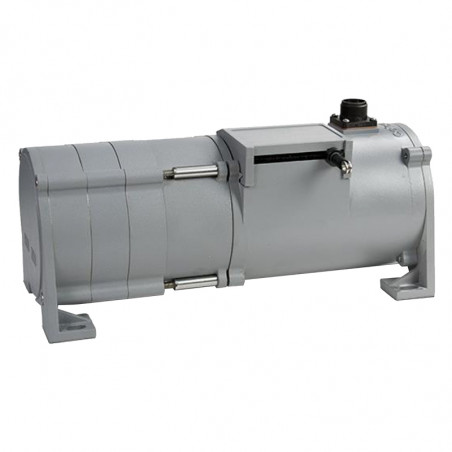

Relier les transducteurs de distance PT9000ext

PT9000Ext - transducers group for industrial applications(up to 42180 mm)- Measure range 43180 mm
- reliable casing
- for difficult production applications
- EX version available

Technical data
Group PT9101 PT9150 PT9232 PT9301 PT9420 PT9510 PT9CN PT9DN
Output Signal Options potentiometer encoder RS232 potentiometer and
tachometer		 current voltage Canabus J1939 Device Net


Technical data
Measurement range [mm] 43180 43180 43180 43180 43180 43180 43180 43180
Accuracy 0,10% 0,02%...0,04% 0,10% 0,10% 0,12% 0,12% 0,010% 0,10%
Repeatability 0,02% 0,02% 0,02% 0,02% 0,05% 0,05% 0,02% 0,02%
Durability 250k...2,5 mln 5 mln 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 250k - 2,5Mln 250k...2,5 mln 250k...2,5 mln

Casing
Material Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel		 Aluminium
Noble steel
Protection level IP67/68 IP65/67 IP67 IP67/68 IP67/68 IP67/68 IP67 IP67
Operation temperature -40...90°C -17...71°C -40...90°C -40...90°C -40...90°C -40...90°C -40...90°C -40...90°C
Vibrations Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max		 Do 10g @
2000 Hz max


Measurement cord
Noble steel covered with nylon. [inch] * ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015		 ø 0,034; 0,024;0,019
0,015
Noble steel [inch*] - - - - - - - -
Thermoelastic plastic - - - - - - - -


Electrical connection
Tips for soldering - - - - - - - -
Wires - - - - - - - -
Cables 7,5m;3m Cable
waterproof		 7,5 m Cable 7,5 m Cable 7,5 m Cable 7,5m;3m Cable
waterproof		 7,5m;3m Cable
waterproof		 - -
Plug Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6/18 pol.+
socket		 Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6 pol.+socket		 Metal plug/
plastic
6 pol.+socket		 micro plug 5pol.+
micro plug 5pol.+
+ socket
(also 5 m cable)		 micro plug 5pol.+
micro plug 5pol.+
+ socket
(also 5 m cable)


Properties
  Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system, EX version Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system
*) 1 inch= 25,4 mm
