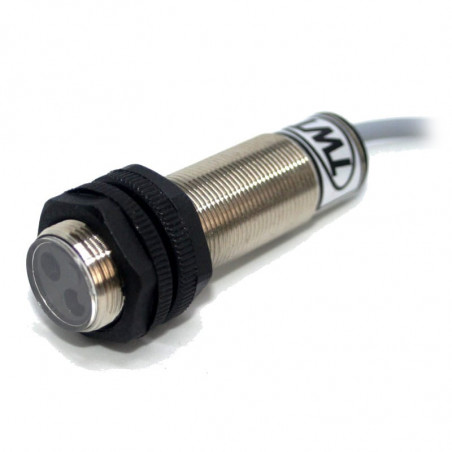

Série de capteurs optiques Reflexy Series Series, PNP DC 4 Fils
  • Série de capteurs optiques Reflexy Series Series, PNP DC 4 Fils

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: TWT

Série de capteurs optiques Reflexy Series Series, PNP DC 4 Fils

Properties
PNP - 4 cable output NO or NC
• metal casing
• 10 - 30V DC, 150mA
• current and overvoltage output
• LED signalisation
• IP65
Specyfication
Power supply
10-30V DC
Power supply ripple
≤ 3,5V
Load current
150mA
Power consumption
< 20mA
Residual voltage
< 2,5V DC
Residual current
< 10µA
Output resistance
Open collector
Output
PNP NO and NC
Light source
LED IR
Switching frequency (impulse/break 1:1)          150Hz
Optic circuit
glass lens
Operation temperature
-10°C - +55°C
Protection level
IP 65
Casing
Nickled brass
Connection type
calbe PCW 2m., 4x0,14mm2

TOO OPTIC REFLECTION SENSORS with output cable
Metal casing M18x1 M18x1 M30x1,5 M30x1,5
Sensitivity zone 1000 3000 4000 8000
Range 0-1m 0-3m 0-4m 0-8m
Reflection element reflector Ø 80mm reflectorØ80mm reflectorØ80mm reflectorØ80mm
Sensitivity control potentiometer potentiometer potentiometer potentiometer
Sensor marking TOR18-1000P TOR18-3000P TOR18-4000P TOR18-8000P


TOO OPTIC REFLECTION SENSORS with M12 connector
Metal casing M18x1 M18x1 M30x1,5 M30x1,5
Sensitivity zone 1000 3000 4000 8000
Range 0-1m 0-3m 0-4m 0-8m
Reflection element reflector
Ø 80mm
reflector
Ø80mm
reflector
Ø80mm
reflector
Ø80mm
Sensitivity control - - - potentiometer
Sensor marking TOR18-1000PK TOR18-3000PK TOR18-4000PK TOR18-8000PK
M12 - złącze w czujniku
Connection
1 10-30V DC brown
2 wy NC white
3 0V DC blue
4 wy NO black
