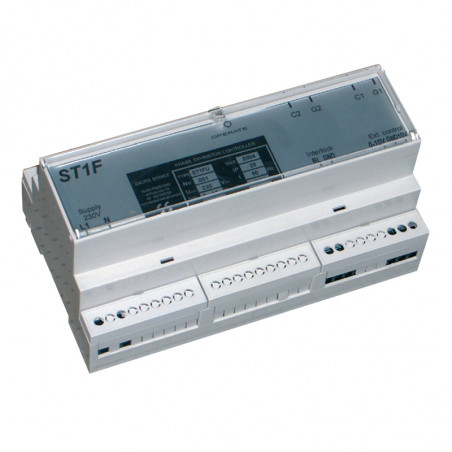

Pilotes de thyristor -st

Aplication :
group control of anti-parallel coupled thyristors in three-phase circuits, such as :
• resistance furnaces
• airconditioners with electrical heating
• paint driers

Features:
• high user qualities
• over-voltage proof
• mounting comfort

Operational advantages:
• input control signals: 0-10V, 4-20mA
• manual control with potentiometer
• interlock input (BL-GND clamps)
• correct phase order indication
• built-in short-circuit protection
• convenient on-rail mounting (35mm)
• easy cable connection

Type	ST1F	ST3F	ST3G
TECHNICAL DATA
Supply voltage	230V lub 400,50Hz	3x230V,50Hz	230V,50Hz
Impulsy bramkowe:	10kHz/60µs/0.2A	10kHz/60µs/0.2A	10kHz/60µs/0.2A
Supply voltage tolerance	-15% ÷ +10%Un	-15% ÷ +10%Un	-15% ÷ +10%Un
Conduction angle range	0-170 o el	0 - 170 o el	0 - 170 o el
Input control signals	0-10V 4-20mA external potentiometer	0-10V 4-20mA external potentiometer	0-10V 4-20mA external potentiometer
Interlock signal	-logic zero -logic one	-logic zero -logic one	-logic zero -logic one
Control Thyristors:	phase	phase	grupowe
Cooling:	air	air	air
Casing protection ratio	IP20	IP20	IP20
Isolation test voltage	2,5kV	2,5kV	2,5kV
Stopień zanieczyszczenia:	3	3	3
Ambient temperature operating range	0-40°C	0-40°C	0-40°C
Storage temperature operating range	-20 do 60°C	-20 do 60°C	-20 do 60°C
Relative humidity	up to 90% (non-condensing)	up to 90% (non-condensing)	up to 90% (non-condensing)
Chassis	plastic (9MD type) on TS35 rail	plastic (9MD type) on TS35 rail	plastic (9MD type) on TS35 rail
Overall dimensions - length x width x height	160x90x75 mm	220x165x90mm	160x90x75mm
Weight:	1,2 kg	2,5kg	0,4kg
