C-CAP 02 Water-cooled capacitor

C-Cap is a new innovative capacitor that was developed by Celem. It is protected by US Patent 9799454 and US Patent 9865398.

  • Temperature switch: Normally Closed, 24V, 1A, recommended wire size 16-28AWG. Opens at 55°C.
  • Mounting: Recommended torque for M16: 8-10 Nm, recommended torque for M6: 5Nm. Celem can supply designated bus-bars.
  • Cooling: Maximal inlet pressure 6 Bar, maximal outlet temperature: 45°C. It is possible to get 4 straight water connectors.

Specifications

Typ C-CAP 02

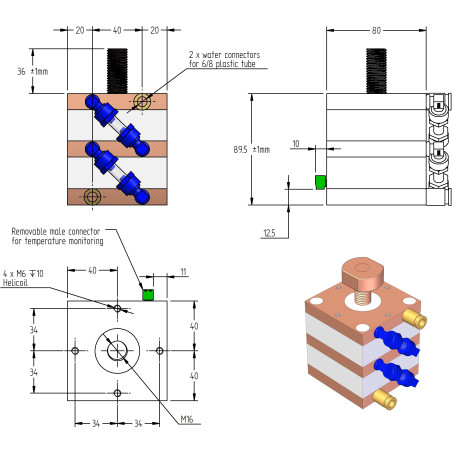

Dimensions (L x W x H) mm 80 x 80 x 89
Weight kg 2.5
Capacitance (±10%) µF 0.18µF 0.38µF 0.65µF 1.2µF 2µF 2.9µF 4.8µF
Sinusoidal Voltage Vrms 1750 1550 1350 1250 1050 950
Peak Voltage V 2475 2192 1909 1768 1485 1344
Max. Current Arms 800 1000 1200 1500 1700 1900 2100
Max. Power kVAr 1300 1500
Freq Range @ Half Power kHz 188-871 103-805 76-640 55-573 38-425 37-354 28-255
Freq Range @ Full Power kHz 376-436 205-279 153-235 109-199 76-153 75-132 55-98
