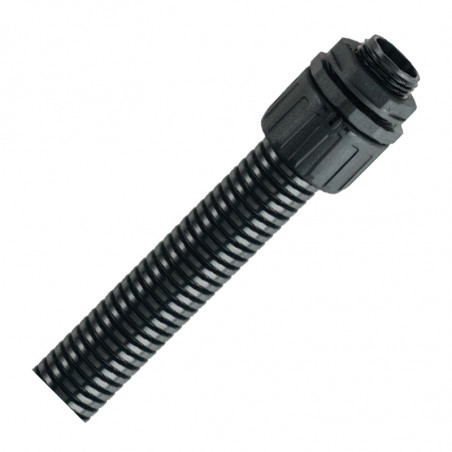

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: FLEXICON

Plashing Plastic - liste

FPAL

FPAS

FPP

FPL

FPC
Construction:
Light weight nylon
(PA6) corrugated flexible conduit.
Colour black or grey.

Construction:
Standard weight,
flame retardant nylon (PA6)
corrugated flexible conduit. Colour black or grey (RAL 7031). Orange
available on request.*

 Construction:
Standard weight
polypropylene, flexible conduit. Colour black, grey (RAL 7031) or white.		 Construction:
Standard weight,
upvc, corrugated pliable conduit.
Colour black, grey (RAL 7045) or white.		 Construction:
Smooth bore, helically formed pvc, flexible conduit with spiral upvc reinforcement and flexible pvc jacket. Colour black or grey (RAL 7001).
Typical Applications: Machines where lower mechanical protection is required and buildings

Typical Applications:
All types of machinery, public buildings.

 Typical Applications: Buildings, particularly where buried in concrete or plaster. Typical Applications:
Static connections in buildings.		 Typical Applications:
Routing of cables within machines.

Conduit

Conduit

Conduit

Conduit

Conduit
Highly flexible and high
fatigue life
High impact strength and
recovers if crushed
Temperature range -40˚C to
+120˚C (-20˚C to +100˚C
for moving applications)
UL recognised
Highly resistant to solvents
and oils
Self extinguishing
Halogen, sulphur and phosphorus free
Vibration and shock tested to EN61373 Cat 2		 Highly flexible and high fatigue life
High impact strength and
recovers if crushed
Temperature range -40˚C to
+120˚C (-20˚C to +100˚C for moving applications)
Lloyd’s Register Type Approval
UL listed / UL recognised
Low Fire Hazard (LFH)
UL 94 V2 flame retardancy
Halogen, sulphur and
phosphorus free
UV resistant (black)
Abrasion resistant
Highly resistant to solvents
and oils
Vibration and shock tested to EN61373 Cat 2

Acid resistant
Temperature range -20˚C to
+90˚C
Self extinguishing
Slit version available on
request*











 High compression strength
Bends to a small radius
IP rating:
-IP40 with MP and T fittings
-IP66 with FLK fittings
-IP67 with MPS fittings
Temperature range
-5˚C to +70˚C
Self extinguishing
UV resistant (black)
Tensile strength:
-FLK 25kg
-MP 20kg
-MPS 15kg


 Highly flexible
Accepts torsional movement
IP rating: IP65
Temperature range -5˚C to
+70˚C (black) -20˚C to +70˚C (grey)
UV resistant (black)
Self extinguishing
Metric threads supplied
complete with locknuts
UL recognised version to
UL1696 for use in US and
Canada available on request
Vibration and shock tested to EN61373 Cat 2

Non-metallic conduit
