Fabricant: Moflon

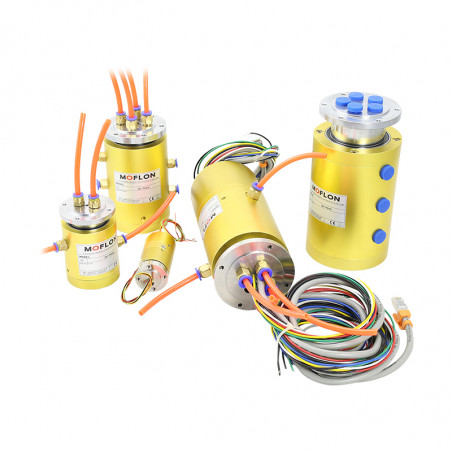

Connecteurs hybrides pneumatiques

MAPH series Liquid Rotary Unions

Moflon manufactures and supplies rotating unions, hydraulic swivel joint, hydraulic rotary union for more than 30 years. Our rotating unions, hydraulic swivel joint, hydraulic rotary union are widely used for all kinds of commercial and industrial applications.
  • Get gas,liquid, power and signal passed on 360° rotating.
  • Support 1/2/3/4/5/6/8/10/12/16 pneumatic/hydraulic passages.
  • Can combine 1~200 circuits electrical power/signal.
  • Connection size :M5，G1/8，G1/4，G3/8，G1/2，G3/4,G1".
  • Different pipe size for liquid[&]gas, can be customized.
  • Media type:Air/gas,chemical,DI/Tap water,oil.
  • All kinds of hydraulic swivel joint,rotating unions, hydraulic rotary unions can be customized on your request.

application/pdfInstall Instruction - Here to Download
Product Pneumatic/Hydraulic
Passages		 Mixed Circuits Connection size Pipe size
MAPH100 1 in 1 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 4mm~12mm
MAPH104 1 in 4 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH200 2 in 2 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH200S 2 in 2 out 1~56 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH200F 2 in 2 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH200W 2 in 2 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH300 3 in 3 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH300S 3 in 3 out 1~56 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH300F 3 in 3 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH400 4 in 4 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH400S 4 in 4 out 1~56 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH400F 4 in 4 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH400W 4 in 4 out 1~96 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH600 6 in 6 out 1~96 M5；G1/8；G1/4； 3mm~12mm
MAPH600S 6 in 6 out 1~56 M5；G1/8；G1/4；G3/8；G1/2 3mm~20mm
MAPH600F 6 in 6 out 1~96 M5；G1/8；G1/4； 3mm~12mm
MAPH800 8 in 8 out 1~96 M5；G1/8；G1/4； 3mm~12mm
MAPH1000 10 in 10 out 1~96 M5； 3mm~8mm
MAPH1200 12 in 12 out 1~96 M5； 3mm~8mm
MAPH1600 16 in 16 out 1~96 M5； 3mm~8mm
