SG Link Transducer
  • SG Link Transducer

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Celesco

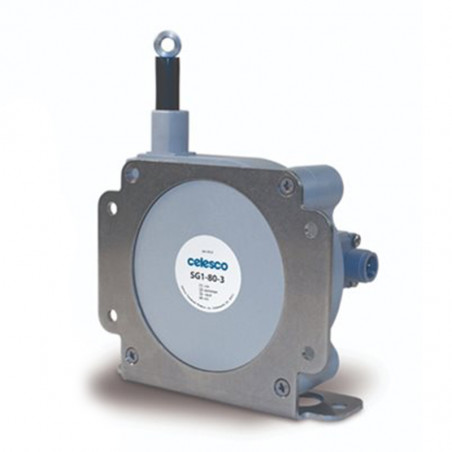

SG Link Transducer

The SG Series expands on the ever popular SP series and pushes out the measurement range even further to 120 inches (3 Meters). .
The SG1 is a simple "bare bones" stringpot without any signal conditioning or voltage regulation. The heart of this sensor is a high-cycle 10K ohm conductive plastic potentiometer that delivers a smooth, precise voltage divider output signal proportional to the travel of the spring-loaded measuring cable. Simply connect a stable, well regulated DC power source and you're good to go.

The SGD provides a customer selectable 4-20mA or 0-10Vdc output signal. Simply connect the appropriate pins on the included M12 connector and that's it. No special jumpers or dipswiches to set. Additionally, the SGD has been designed to work in both indoor and outdoor environments and offers IP67 protection against the elements.



SG1

SGD
voltage divider 4-20mA or 0-10Vdc
Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

The SG Series expands on the ever popular SP series and pushes out the measurement range even further to 120 inches (3 Meters). .
The SG1 is a simple "bare bones" stringpot without any signal conditioning or voltage regulation. The heart of this sensor is a high-cycle 10K ohm conductive plastic potentiometer that delivers a smooth, precise voltage divider output signal proportional to the travel of the spring-loaded measuring cable. Simply connect a stable, well regulated DC power source and you're good to go.

The SGD provides a customer selectable 4-20mA or 0-10Vdc output signal. Simply connect the appropriate pins on the included M12 connector and that's it. No special jumpers or dipswiches to set. Additionally, the SGD has been designed to work in both indoor and outdoor environments and offers IP67 protection against the elements.



SG1

SGD
voltage divider 4-20mA or 0-10Vdc
Moins
Lire la suite
