M2EXV - Convertisseur de signal avec entrée CC MV, tension et courant - personnalisable
  • M2EXV - Convertisseur de signal avec entrée CC MV, tension et courant - personnalisable

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: M-SYSTEM

M2EXV - Convertisseur de signal avec entrée CC MV, tension et courant - personnalisable

  • M2EXV

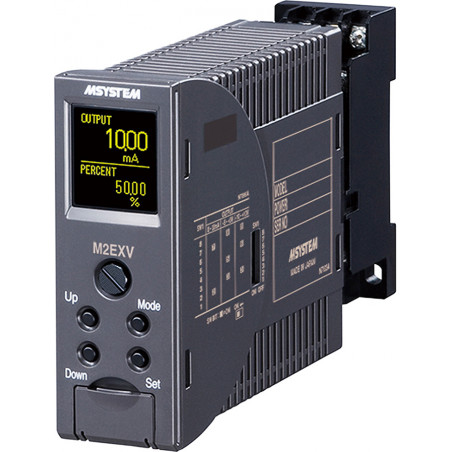

M2EXV is a converter with DC mV input and output, current and voltage. It has an OEL display. Ranges of inputs and outputs calibrated by means of a PC or by means of buttons on the front of the housing.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Programmable via PC and buttons on the front of the housing
  • OEL display on the front of the case
  • Power 24V DC, 100-240V AC
  • LED power indicator
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Configurable by PC and buttons on the front of the case
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 29.5x83x124mm
Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté

M2EXV is a converter with DC mV input and output, current and voltage. It has an OEL display. Ranges of inputs and outputs calibrated by means of a PC or by means of buttons on the front of the housing.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • Programmable via PC and buttons on the front of the housing
  • OEL display on the front of the case
  • Power 24V DC, 100-240V AC
  • LED power indicator
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Configurable by PC and buttons on the front of the case
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 29.5x83x124mm
