Affichages pour les applications de communication

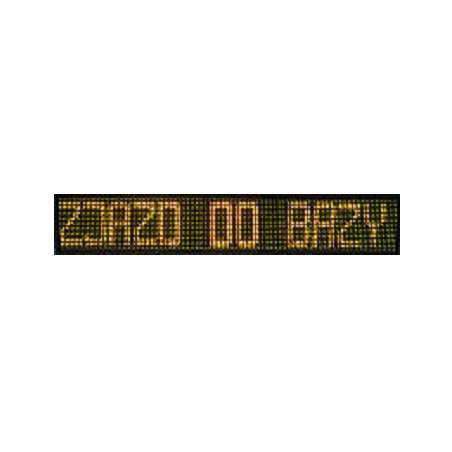

Displays are used in public transport vehicles to inform passengers about line number. They can be also used in trains. The hole systems contains from front, side and rear panel. Front panel has controller with display by default. other panels are controlled from front panel. It is possible to connect external controller. Panels programming is made from PC computer(RS, USB).


Diodes
elliptic 5mm
Raster
10mm
View angle
H-120,V-60
Brightness
point.1,6cd
Casing
steel
Power supply
20-28V
Opto-sensor
LED brightness adjustment
Character height
max 155 mm
Memory
Dynamic max 199tras
Programming
central with RS-232 (COM)
Guarantee
12 months


DAT -40/16
DAT-80/16
DAT-120/16
DAT-160/16
