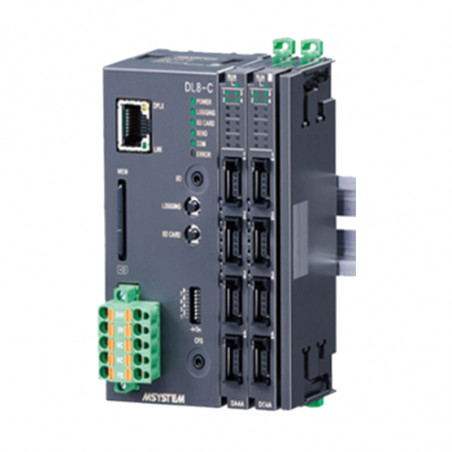

![Enregistreur de la série DL-8 Enregistreur de la série DL-8](https://www.dacpol.eu/8823-large_default/enregistreur-de-la-serie-dl-8.jpg)
![Enregistreur de la série DL-8 Enregistreur de la série DL-8](https://www.dacpol.eu/8823-large_default/enregistreur-de-la-serie-dl-8.jpg)
Vous devez être connecté
Les photos sont à titre informatif uniquement. Voir les spécifications du produit
please use latin characters
The DL-8 is multifunctional device for simple remote monitoring via internet browser. Thanks to automatic button size adjustment, the device is pretty simple and intuitive in use. DL-8 is dedicated to work in Master – Slave system. Four versions are available: A (basic), B, C, D (expanded). The DL-8 could also upload data to a cloud server. For expanded version there are also available the following functions: FTP server, FTP client, email sending, data logging in a SD Card.
Rated data
Supply | 24V DC |
---|---|
Ethernet | RJ-45 contactor |
Max. no, of I/O modules | 12 (max. current 1.6A) |
Calendar clock | Year, month, day, hour, minute, sec |
Status indicator LED | Power, logging, SD card, sending, error |
Communication Standard | IEEE 802.3u |
Transmission | 10BASE-T, 10BASE-TX |
Baud rate | 10…100 Mbps |
Protocol | TCP/IP, Modbus/TCP, HTTP, FTP, SMTP, SNTP |
Transmision medium | STP category 5/5e |
IP address | 192.168.0.1 |
Power consumption | 12W |
Operating temperature | -10…55°C |
Operating jumidity | 30….90% no condensation |
Atmosphere | No corrosive gas or heavy dust |
Mounting | DIN rail |
Weight | 170g |
Isolation resistance | ≥100MΩ |
Os (PC) | Windows XP (SP3) or later |
Browser (PC) | IE, Mozilla, Opera, Chrome, Safari |
OS (tablet) | iOS 5 or later, Android 4.0 or later |
Browser (tablet) | Safari, Android, Chrome |
OS (smartphone) | iOS 5 or later, Android 4.0 or later |
Browser (smartphone) | Safari, Android, Chrome |
State indicators
Name | Color | Function |
---|---|---|
POWER | Green |
ON – device operating normally |
LOGGING | Green | ON – logging |
SD CARD | Green |
ON – SD card mounted |
SEND | Green | Blinking – Reporting |
COM | Green | Blinking – communication (expect Modbus/TCP Master |
ERROR | Red | ON – error |
DPLX | Green | ON – full duplex |
LNK | Amber | ON – link |
Dimensions
System configuration examples
