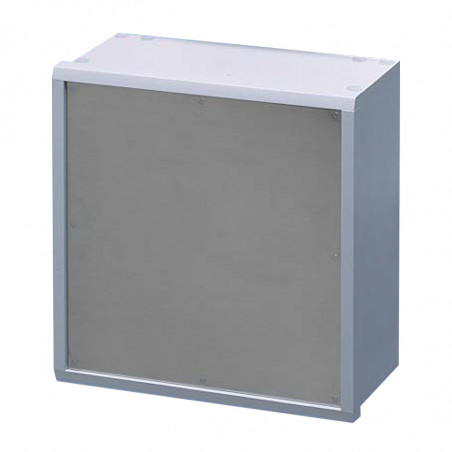

Mur Multitec Housing

Versatile aluminium enclosures for indoor applications. Robust design and easy access from both sides during installation on the wall. Removable rear panel fits into a recessed aperture in the case body. Eight copper contacts (M52 00 003) are included for EMC. Front fixing (FF) or rear fixing (RF) front panels are ordered separately.

Supply
1)Case body
2)Rear panel
3)M4 x 10 mm (x4)
4)Cover plug (x4)
5)M4 x 6 mm (x4)
6)M2.5 Nut (x6/8)
7)*Front panel FF
8)*Front panel RF
*Accessories
Standard colurs
Dimensions and drawings Multitec
Multitec


Part No. Version H W D A
Front Panel		 B
Front Panel
M 52 15 105 S 150 (5.90”) 150 (5.90”) 65 (2.55”) 129 (5.07”) 129 (5.07”)
M 52 16 105 SL 150 (5.90”) 250 (9.84”) 65 (2.55”) 229 (9.01”) 129 (5.07”)
M 52 25 205 M 250 (9.84”) 250 (9.84”) 100 (3.93”) 229 (9.01”) 229 (9.01”)
M 52 35 205 L 250 (9.84”) 350 (13.77”) 100 (3.93”) 329 (12.95”) 229 (9.01”)

Front Panel FF

Part No. Version A B
M 52 15 601 S 129 (5.07”) 129 (5.07”)
M 52 16 601 SL 229 (9.01”) 129 (5.07”)
M 52 25 601 M 229 (9.01”) 229 (9.01”)
M 52 35 601 L 329 (12.95”) 229 (9.01”)


Front Panel RF
Part No. Version A B
M 52 15 610 S 128.5 (5.05”) 128.5 (5.05”)
M 52 16 610 SL 228.5 (8.99”) 128.5 (5.05”)
M 52 25 610 M 228.5 (8.99”) 228.5 (8.99”)
M 52 35 610 L 328.5 (12.93”) 228.5 (8.99”)
Panel Mounting Frame
Part No. Version
M 52 15 101 S
M 52 16 101 SL
M 52 25 101 M
M 52 35 101 L
