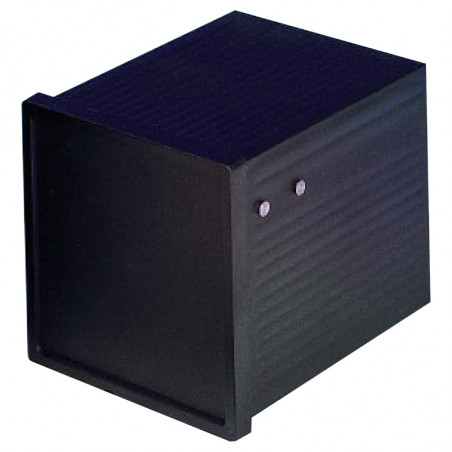

Boîtiers de table série 445/441 standard
  • Boîtiers de table série 445/441 standard

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Apra

Boîtiers de table série 445/441 standard



W
[mm]		 H
[mm]		 D
[mm]		 d
[mm]		 Body DIN
43 700		 Mounting Clips Front aluminium panel plexi front panel, red. -09, transp. -05 -05 Back panel closed Back panel with ventilation Tylny panel z otworami na terminale
(1) (2) (3) (5) (6) (7) (8) (9)
48 24 60.0 53.0 445-440 440-001 441-440 445-451 44-5452-xx 44-5453-01 44-5453-02 Terminals
82.5 75.5 445-441 440-005 441-441 445-451 44-5452-xx 44-5453-01 44-5453-02
107.0 100.0 445-444 440-009 441-444 445-451 44-5452-xx 44-5453-01 44-5453-02 -

48 48 60.5 53.5 53.5 440-001 441-120 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
82.5 75.5 75.5 440-005 441-121 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
116.5 109.5 109.5 440-009 441-122 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
138.5 131.5 131.5 - 441-123 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
107.0 100.0 100.0 - 441-124 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
163.0 156.0 156.0 - 441-125 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
72 24 60.0 53.0 445-420 445-420 441-420 445-431 44-5432-xx 44-5433-01 44-5433-02 -
82.5 75.5 445-421 445-421 441-421 445-431 44-5432-xx 44-5433-01 44-5433-02 -
107.0 100.0 445-424 445-424 441-424 445-431 44-5432-xx 44-5433-01 44-5433-02 -

72 36 60.5 53.5 53.5 440-001 441-040 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03
82.5 75.5 75.5 440-005 441-041 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03
116.5 109.5 445-042 440-009 441-042 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03
107.0 100.0 445-044 - 441-044 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03

72 48 60.5 53.5 445-140 440-001 - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
82.5 75.5 445-141 440-005 - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
116.5 109.5 445-142 440-009 - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
107.0 100.0 445-144 - - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
72 72 60.5 53.5 445-220 440-001 441-220 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
82.5 75.5 445-221 440-005 441-221 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
138.5 131.5 445-223 440-009 441-223 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
138.5 131.5 445-223 - 441-223 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
107.0 100.0 445-224 - 441-224 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
163.0 156.0 445-225 - 441-225 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
209.0 201.0 445-226 - 441-226 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03

W
[mm]		 H
[mm]		 D
[mm]		 d
[mm]		 Body DIN
43 700		 Mounting Clips Front aluminium panel plexi front panel, red. -09, transp. -05 Back panel closed Back panel with ventilation Tylny panel z otworami na terminale
(1) (2) (3) (5) (6) (7) (8) (9)
96 24 60.5 53.5 445-100 440-001 441-100 445-111 44-5112-xx 44-5113-01 44-5113-02 -
82.5 75.5 445-101 440-005 441-101 445-111 44-5112-xx 44-5113-01 44-5113-02 -
116.5 109.5 445-102 440-009 441-102 445-111 44-5112-xx 44-5113-01 44-5113-02 -
107.0 100.0 445-104 - 441-104 445-111 44-5112-xx 44-5113-01 44-5113-02 -
96 48 60.5 53.5 445-160 440-001 441-160 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
82.5 75.5 445-161 440-005 441-161 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
116.5 109.5 445-162 440-009 441-162 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
138.5 131.5 445-163 - 441-163 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
107.0 100.0 445-164 - 441-164 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
163.0 156.0 445-165 - 441-165 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03

96 48 60.5 53.5 445-760 440-001 441-760 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
82.5 75.5 445-761 440-005 441-761 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
116.5 109.5 445-762 440-009 441-762 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
138.5 131.5 445-763 - 441-763 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
107.0 100.0 445-764 - 441-764 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
163.0 156.0 445-765 - 441-765 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03

96 72 60.5 53.5 445-240 440-001 - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
82.5 75.5 445-241 440-005 - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
116.5 109.5 445-242 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
138.5 131.5 445-243 440-009 - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
107.0 100.0 445-244 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
163.0 156.0 445-245 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
209.0 201.0 445-246 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03

96 96 60.5 53.5 445-300 440-001 441-300 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
82.5 75.5 445-301 440-005 441-301 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
116.5 109.5 445-302 443-001 441-302 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
138.5 131.5 445-303 - 441-303 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
107.0 100.0 445-304 - 441-304 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
163.0 156.0 445-305 - 441-305 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
209.0 201.0 445-306 - 441-306 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03

144 48 60.5 53.5 445-180 440-001 441-180 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
82.5 75.5 445-181 443-001 441-181 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
116.5 109.5 445-182 443-002 441-182 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
138.5 131.5 445-183 - 441-183 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
107.0 100.0 445-184 - 441-184 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
163.0 156.0 445-185 - 441-185 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
209.0 201.0 445-186 - 441-186 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03


W
[mm]		 H
[mm]		 D
[mm]		 d
[mm]		 Body DIN
43 700		 Mounting Clips Front aluminium panel plexi front panel, red. -09, transp. -05 -05 Back panel closed Back panel with ventilation Tylny panel z otworami na terminale
(1) (2) (3) (5) (6) (7) (8) (9)
144 72 60.5 53.5 445-260 440-001 441-260 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
82.5 75.5 445-261 443-001 441-261 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
116.5 109.5 445-262 443-002 441-262 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
138.5 131.5 445-263 - 441-263 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
107.0 100.0 445-264 - 441-264 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
163.0 156.0 445-265 - 441-265 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
209.0 201.0 445-266 - 441-266 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03

144 96 60.5 53.5 445-320 440-001 441-320 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
82.5 75.5 445-321 443-001 441-321 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
116.5 109.5 445-322 443-002 441-322 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
138.5 131.5 445-323 - 441-323 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
107.0 100.0 445-324 - 441-324 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
163.0 156.0 445-325 - 441-325 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
209.0 201.0 445-326 - 441-326 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03

144 144 60.5 53.5 445-360 440-001 441-360 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
82.5 75.5 445-361 443-001 441-361 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
116.5 109.5 445-362 443-002 441-362 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
138.5 131.5 445-363 - 441-363 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
107.0 100.0 445-364 - 441-364 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
163.0 156.0 445-365 - 441-365 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
209.0 201.0 445-366 - 441-366 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03

192 72 60.5 53.5 445-280 440-001 441-280 445-291 44-5292-xx 44-5293-01 44-5293-02 -
82.5 75.5 445-281 443-001 441-281 - - - - -
116.5 109.5 445-282 443-002 441-282 - - - - -
138.5 131.5 445-283 - 441-283 - - - - -
107.0 100.0 445-284 - 441-284 - - - - -
163.0 156.0 445-285 - 441-285 - - - - -
209.0 201.0 445-286 - 441-286 - - - - -
192 96 60.5 53.5 445-340 440-001 - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
82.5 75.5 445-341 443-001 - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
116.5 109.5 445-342 443-002 - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
138.5 131.5 445-343 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
107.0 100.0 445-344 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
163.0 156.0 445-345 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
209.0 201.0 445-346 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -

192 144 60.5 53.5 445-380 440-001 - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
82.5 75.5 445-381 443-001 - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
116.5 109.5 445-382 443-002 - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
138.5 131.5 445-383 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
107.0 100.0 445-384 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
163.0 156.0 445-385 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
209.0 201.0 445-386 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
288 72 60.5 53.5 445-460 440-001 441-460 445-471 44-5472-xx 44-5473-01 - -
82.5 75.5 445-461 443-001 441-461 445-471 44-5472-xx 44-5473-01 - -
116.5 109.5 445-462 443-002 441-462 445-471 44-5472-xx 44-5473-01 - -
138.5 131.5 445-463 - 441-463 445-471 44-5472-xx 44-5473-01 - -
107.0 100.0 445-464 - 441-464 445-471 44-5472-xx 44-5473-01 - -
163.0 156.0 445-465 - 441-465 445-471 44-5472-xx 44-5473-01 - -
209.0 201.0 445-466 - 441-466 445-471 44-5472-xx 44-5473-01 - -

288 96 60.5 53.5 445-600 440-001 - 445-611 44-5612-xx 44-5613-01 - -
82.5 75.5 445-601 440-005 - 445-611 44-5612-xx 44-5613-01 - -

288 144 60.5 53.5 445-480 440-001 441-480 445-491 44-5492-xx 44-5493-01 - -
82.5 75.5 445-481 443-001 - 445-491 44-5492-xx 44-5493-01 - -
    445-482 443-002 - 445-491 44-5492-xx 44-5493-01 - -
138.5 131.5 445-483 - - 445-491 44-5492-xx 44-5493-01 - -
    445-484 - - 445-491 44-5492-xx 44-5493-01 - -
163.0 156.0 445-485 - - 445-491 44-5492-xx 44-5493-01 - -
    445-486 - - 445-491 44-5492-xx 44-5493-01 - -

Mounting

Part number   Part number   Part number
440-005   443-002   443-001

Part number   Part number
440-009   440-001


Full front panel

H mm W mm part number
24 48 44-8457-00
24 96 44-8117-00
48 48 445-137
72 36 445-077
72 72 445-237
96 48 445-177
96 96 445-317
144 72 445-277
144 96 44-5337-00
144 144 445-377


Drzwiczki transparentne:

compatible withIEC 61554.

Dimensions according to IEC61554 WxH
[mm]		 IP with steel key cliper with plastic key cliper
144 x 144 IP 54 44-6050-01 44-6050-02
72 x 144 IP 54 44-6100-01 44-6100-02
96 x 96 IP 54 44-6040-01 44-6040-02
96 x 144 IP 42 44-6150-01 44-6150-02
96 x 48 IP 42 44-6090-01 44-6090-02
192 x 96 IP 42 44-6110-01 44-6110-02
192 x 144 IP 54 44-6120-01 44-6120-02
288 x 144 IP 42 44-6130-01 44-6130-02
72 x 72 IP 42 44-6030-01 44-6030-02


grip for DIN:
Adapter na szynę DIN TS 35. Adapter zgodny z normą DIN EN 50022.
Odległość od tylnego panelu do szyny DIN to 47 mm. Odległość ta pozwala na swobodne wyprowadzenie połączeń.
Zestaw zawiera: adapter na szynę DIN, zapinki na obudowę, elementy montażowe.

Casing height [mm] Number
48 44-5701-00
72 44-5702-00
96 44-5703-01
144 44-5704-01


Złącza śrubowe po tylny panel obudowy

Casing height [mm] Connector quantity Number
48 5 445-565
72 10 445-570
96 15 445-575
144 24 445-584
Moins
Lire la suite

Envoyez une demande

Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?

Nous contacter
DEMANDEZ LE PRODUIT close
Merci d'avoir envoyé votre message. Nous vous répondrons dans les plus brefs délais.
DEMANDEZ LE PRODUIT close
Feuilleter
envoyer une demande

Ajouter à la liste de souhaits

Vous devez être connecté



W
[mm]		 H
[mm]		 D
[mm]		 d
[mm]		 Body DIN
43 700		 Mounting Clips Front aluminium panel plexi front panel, red. -09, transp. -05 -05 Back panel closed Back panel with ventilation Tylny panel z otworami na terminale
(1) (2) (3) (5) (6) (7) (8) (9)
48 24 60.0 53.0 445-440 440-001 441-440 445-451 44-5452-xx 44-5453-01 44-5453-02 Terminals
82.5 75.5 445-441 440-005 441-441 445-451 44-5452-xx 44-5453-01 44-5453-02
107.0 100.0 445-444 440-009 441-444 445-451 44-5452-xx 44-5453-01 44-5453-02 -

48 48 60.5 53.5 53.5 440-001 441-120 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
82.5 75.5 75.5 440-005 441-121 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
116.5 109.5 109.5 440-009 441-122 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
138.5 131.5 131.5 - 441-123 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
107.0 100.0 100.0 - 441-124 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
163.0 156.0 156.0 - 441-125 445-131 44-5132-xx 44-5133-01 44-5133-02 44-5133-03
72 24 60.0 53.0 445-420 445-420 441-420 445-431 44-5432-xx 44-5433-01 44-5433-02 -
82.5 75.5 445-421 445-421 441-421 445-431 44-5432-xx 44-5433-01 44-5433-02 -
107.0 100.0 445-424 445-424 441-424 445-431 44-5432-xx 44-5433-01 44-5433-02 -

72 36 60.5 53.5 53.5 440-001 441-040 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03
82.5 75.5 75.5 440-005 441-041 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03
116.5 109.5 445-042 440-009 441-042 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03
107.0 100.0 445-044 - 441-044 445-051 44-5052-xx 44-5053-01 44-5053-02 44-5053-03

72 48 60.5 53.5 445-140 440-001 - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
82.5 75.5 445-141 440-005 - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
116.5 109.5 445-142 440-009 - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
107.0 100.0 445-144 - - 445-151 44-5152-xx 44-5153-01 44-5153-02 44-5153-03
72 72 60.5 53.5 445-220 440-001 441-220 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
82.5 75.5 445-221 440-005 441-221 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
138.5 131.5 445-223 440-009 441-223 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
138.5 131.5 445-223 - 441-223 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
107.0 100.0 445-224 - 441-224 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
163.0 156.0 445-225 - 441-225 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03
209.0 201.0 445-226 - 441-226 445-231 44-5232-xx 44-5233-01 44-5233-02 44-5233-03

W
[mm]		 H
[mm]		 D
[mm]		 d
[mm]		 Body DIN
43 700		 Mounting Clips Front aluminium panel plexi front panel, red. -09, transp. -05 Back panel closed Back panel with ventilation Tylny panel z otworami na terminale
(1) (2) (3) (5) (6) (7) (8) (9)
96 24 60.5 53.5 445-100 440-001 441-100 445-111 44-5112-xx 44-5113-01 44-5113-02 -
82.5 75.5 445-101 440-005 441-101 445-111 44-5112-xx 44-5113-01 44-5113-02 -
116.5 109.5 445-102 440-009 441-102 445-111 44-5112-xx 44-5113-01 44-5113-02 -
107.0 100.0 445-104 - 441-104 445-111 44-5112-xx 44-5113-01 44-5113-02 -
96 48 60.5 53.5 445-160 440-001 441-160 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
82.5 75.5 445-161 440-005 441-161 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
116.5 109.5 445-162 440-009 441-162 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
138.5 131.5 445-163 - 441-163 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
107.0 100.0 445-164 - 441-164 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
163.0 156.0 445-165 - 441-165 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03

96 48 60.5 53.5 445-760 440-001 441-760 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
82.5 75.5 445-761 440-005 441-761 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
116.5 109.5 445-762 440-009 441-762 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
138.5 131.5 445-763 - 441-763 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
107.0 100.0 445-764 - 441-764 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03
163.0 156.0 445-765 - 441-765 445-171 44-5172-xx 44-5173-01 44-5173-02 44-5173-03

96 72 60.5 53.5 445-240 440-001 - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
82.5 75.5 445-241 440-005 - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
116.5 109.5 445-242 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
138.5 131.5 445-243 440-009 - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
107.0 100.0 445-244 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
163.0 156.0 445-245 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03
209.0 201.0 445-246 - - 445-251 44-5252-xx 44-5253-01 44-5253-02 44-5253-03

96 96 60.5 53.5 445-300 440-001 441-300 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
82.5 75.5 445-301 440-005 441-301 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
116.5 109.5 445-302 443-001 441-302 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
138.5 131.5 445-303 - 441-303 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
107.0 100.0 445-304 - 441-304 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
163.0 156.0 445-305 - 441-305 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03
209.0 201.0 445-306 - 441-306 445-311 44-5312-xx 44-5313-01 44-5313-02 44-5313-03

144 48 60.5 53.5 445-180 440-001 441-180 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
82.5 75.5 445-181 443-001 441-181 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
116.5 109.5 445-182 443-002 441-182 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
138.5 131.5 445-183 - 441-183 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
107.0 100.0 445-184 - 441-184 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
163.0 156.0 445-185 - 441-185 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03
209.0 201.0 445-186 - 441-186 445-191 44-5192-xx 44-5193-01 44-5193-02 44-5193-03


W
[mm]		 H
[mm]		 D
[mm]		 d
[mm]		 Body DIN
43 700		 Mounting Clips Front aluminium panel plexi front panel, red. -09, transp. -05 -05 Back panel closed Back panel with ventilation Tylny panel z otworami na terminale
(1) (2) (3) (5) (6) (7) (8) (9)
144 72 60.5 53.5 445-260 440-001 441-260 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
82.5 75.5 445-261 443-001 441-261 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
116.5 109.5 445-262 443-002 441-262 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
138.5 131.5 445-263 - 441-263 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
107.0 100.0 445-264 - 441-264 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
163.0 156.0 445-265 - 441-265 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03
209.0 201.0 445-266 - 441-266 445-271 44-5272-xx 44-5273-01 44-5273-02 44-5273-03

144 96 60.5 53.5 445-320 440-001 441-320 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
82.5 75.5 445-321 443-001 441-321 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
116.5 109.5 445-322 443-002 441-322 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
138.5 131.5 445-323 - 441-323 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
107.0 100.0 445-324 - 441-324 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
163.0 156.0 445-325 - 441-325 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03
209.0 201.0 445-326 - 441-326 445-331 44-5332-xx 44-5333-01 44-5333-02 44-5333-03

144 144 60.5 53.5 445-360 440-001 441-360 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
82.5 75.5 445-361 443-001 441-361 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
116.5 109.5 445-362 443-002 441-362 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
138.5 131.5 445-363 - 441-363 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
107.0 100.0 445-364 - 441-364 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
163.0 156.0 445-365 - 441-365 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03
209.0 201.0 445-366 - 441-366 445-371 44-5372-xx 44-5373-01 44-5373-02 44-5373-03

192 72 60.5 53.5 445-280 440-001 441-280 445-291 44-5292-xx 44-5293-01 44-5293-02 -
82.5 75.5 445-281 443-001 441-281 - - - - -
116.5 109.5 445-282 443-002 441-282 - - - - -
138.5 131.5 445-283 - 441-283 - - - - -
107.0 100.0 445-284 - 441-284 - - - - -
163.0 156.0 445-285 - 441-285 - - - - -
209.0 201.0 445-286 - 441-286 - - - - -
192 96 60.5 53.5 445-340 440-001 - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
82.5 75.5 445-341 443-001 - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
116.5 109.5 445-342 443-002 - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
138.5 131.5 445-343 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
107.0 100.0 445-344 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
163.0 156.0 445-345 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -
209.0 201.0 445-346 - - 445-351 44-5352-xx 44-5353-01 44-5353-02 -

192 144 60.5 53.5 445-380 440-001 - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
82.5 75.5 445-381 443-001 - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
116.5 109.5 445-382 443-002 - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
138.5 131.5 445-383 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
107.0 100.0 445-384 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
163.0 156.0 445-385 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
209.0 201.0 445-386 - - 445-391 44-5392-xx 44-5393-01 44-5393-02 44-5393-03
288 72 60.5 53.5 445-460 440-001 441-460 445-471 44-5472-xx 44-5473-01 - -
82.5 75.5 445-461 443-001 441-461 445-471 44-5472-xx 44-5473-01 - -
116.5 109.5 445-462 443-002 441-462 445-471 44-5472-xx 44-5473-01 - -
138.5 131.5 445-463 - 441-463 445-471 44-5472-xx 44-5473-01 - -
107.0 100.0 445-464 - 441-464 445-471 44-5472-xx 44-5473-01 - -
163.0 156.0 445-465 - 441-465 445-471 44-5472-xx 44-5473-01 - -
209.0 201.0 445-466 - 441-466 445-471 44-5472-xx 44-5473-01 - -

288 96 60.5 53.5 445-600 440-001 - 445-611 44-5612-xx 44-5613-01 - -
82.5 75.5 445-601 440-005 - 445-611 44-5612-xx 44-5613-01 - -

288 144 60.5 53.5 445-480 440-001 441-480 445-491 44-5492-xx 44-5493-01 - -
82.5 75.5 445-481 443-001 - 445-491 44-5492-xx 44-5493-01 - -
    445-482 443-002 - 445-491 44-5492-xx 44-5493-01 - -
138.5 131.5 445-483 - - 445-491 44-5492-xx 44-5493-01 - -
    445-484 - - 445-491 44-5492-xx 44-5493-01 - -
163.0 156.0 445-485 - - 445-491 44-5492-xx 44-5493-01 - -
    445-486 - - 445-491 44-5492-xx 44-5493-01 - -

Mounting

Part number   Part number   Part number
440-005   443-002   443-001

Part number   Part number
440-009   440-001


Full front panel

H mm W mm part number
24 48 44-8457-00
24 96 44-8117-00
48 48 445-137
72 36 445-077
72 72 445-237
96 48 445-177
96 96 445-317
144 72 445-277
144 96 44-5337-00
144 144 445-377


Drzwiczki transparentne:

compatible withIEC 61554.

Dimensions according to IEC61554 WxH
[mm]		 IP with steel key cliper with plastic key cliper
144 x 144 IP 54 44-6050-01 44-6050-02
72 x 144 IP 54 44-6100-01 44-6100-02
96 x 96 IP 54 44-6040-01 44-6040-02
96 x 144 IP 42 44-6150-01 44-6150-02
96 x 48 IP 42 44-6090-01 44-6090-02
192 x 96 IP 42 44-6110-01 44-6110-02
192 x 144 IP 54 44-6120-01 44-6120-02
288 x 144 IP 42 44-6130-01 44-6130-02
72 x 72 IP 42 44-6030-01 44-6030-02


grip for DIN:
Adapter na szynę DIN TS 35. Adapter zgodny z normą DIN EN 50022.
Odległość od tylnego panelu do szyny DIN to 47 mm. Odległość ta pozwala na swobodne wyprowadzenie połączeń.
Zestaw zawiera: adapter na szynę DIN, zapinki na obudowę, elementy montażowe.

Casing height [mm] Number
48 44-5701-00
72 44-5702-00
96 44-5703-01
144 44-5704-01


Złącza śrubowe po tylny panel obudowy

Casing height [mm] Connector quantity Number
48 5 445-565
72 10 445-570
96 15 445-575
144 24 445-584
Moins
Lire la suite
Commentaires (0)
