Fabricant: Patlite

EW / EWS - Signalisation audible industrielle

Technical data

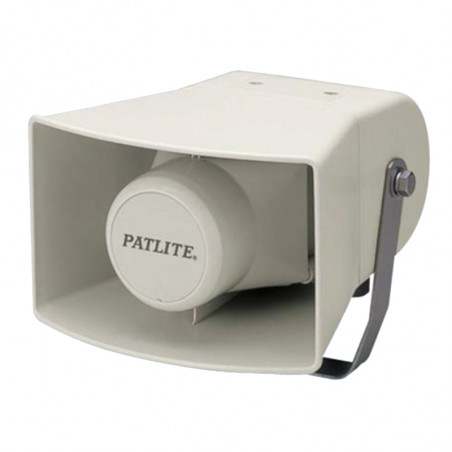

The model EWH contains 32 pre-recorded sounds in one unit with an originally designed wide horn producing a clear, high-volume sound. Various optional selections make the EWH ideal for automated applications that needs the variety of sounds.

Dimensions [mm]



EWH SERIES:

1 - Nominal voltage
24 : 12/24V AC/DC
48 : 48V DC
100 : 100V AC
200 : 200V AC		 2- Sound type
A : type A
C : type C
D : type D		 3 - Casing colour
J : grey
Y : yellow
R: red

SIZE - 186mm x 230mm x 122mm, without mounting bracket
INPUT VOLTAGES - 12-24V AC/DC
- 48V DC
- 100-120V AC
- 200V AC
AUDIBLE STYLES - Alarms
- Chimes
- Melodies
MOUNTING - Universal mounting bracket permits easy installation in any location
- Indoors: vertical (any direction) or horizontal
- Outdoors: upright only with horn facing downward
BODY STYLE/COLORS - Style: Wide horn
- Color: Beige, Yellow, Red
VOLUME - Maximum 105dB at 1 meter
- Adjustable from zero
SOUND SELECTION - Dip switch setting selects 1 of 7 sound lists
- Each sound list contains 8 sounds
- 8 signal wires provided to select any sound in the list
- Dip switch setting can also select Binary Input Mode
- In Binary Mode, use 6 signal wires to select any of 32 sounds
CONFORMITY STANDARDS - CE Marking (AC/DC12-24V only)
PROTECTION RATINGS - IP-53
PLAYBACK OPTIONS - Dry contact closure, such as switches or relay contacts
- Open collector transistor, NPN only, DC12-24V only
EWHS: Series


1 - Nominal voltage
24 : 12/24V AC/DC
48 : 48V DC
100 : 100V AC
200 : 200V AC		 2- Sound type
A : type A
C : type C
D : type D
E : type E		 3 - Casing colour
J : grey
Y : yellow
R: red

SIZE - 186mm x 230mm x 122mm (not including mounting bracket)
INPUT VOLTAGES - 12-24V AC/DC
- 48V DC
- 100-120V AC
- 200V AC
AUDIBLE STYLES - Alarms
- Chimes
- Melodies
MOUNTING - Universal mounting bracket permits easy installation in any location
- Indoors: vertical(any direction) or horizontal
- Outdoors: upright only with horn facing downward
BODY STYLE/COLORS - Style: Wide horn
- Color: Beige, Yellow, Red
VOLUME - Maximum 105dB at 1 meter
- Adjustable volume control
SOUND SELECTION - Dip switch setting selects sound to be played
- sound plays when power is applied
CONFORMITY STANDARDS - CE Marking (AC/DC12-24V only)
PROTECTION RATINGS - IP-53
PLAYBACK OPTIONS - Dry contact closure, such as switches or relay contacts
- Open-collector transistor, NPN only, DC12-24V only
