Fabricant: ABB

IGBT IGB

Transistor Modules IGBT - ABB

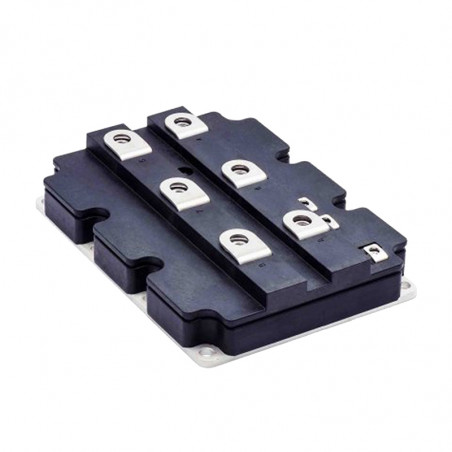

Product ID: 5SNA1500E330305
Technical Information: HiPak Module
ABB Designation Type: 3300V 1500A

Part number Voltage
VCES (V)
Current
IC (A)
Configuration VCEsat (V)
typ. 125°C
VF ( V )
typ. 125°C
Housing
Tvj(operational) up to 125°C
1.7 kV

5SND 0800M170100

1700 2 x 800 (3) – Dual IGBT 2,6 1,7 M - PDF
(Download)

5SNE 0800M170100

1700 800 (2) – Chopper 2,6 1,7 M - PDF (Download)

5SNA 1600N170100

1700 1600 (1) – Single IGBT 2,6 1,7 N1 - PDF (Download)

5SNA 1800E170100

1700 1800 (1) – Single IGBT 2,6 1,7 E - PDF (Download)

5SNA 2400E170100 **

1700 2400 (1) – Single IGBT 2,6 1,7 E - PDF (Download)
3.3 kV

5SNE 0800E330100

3300 800 (2) – Chopper 3,8 2,35 E - PDF (Download)

5SNA 0800N330100

3300 800 (1) – Single IGBT 3,8 2,35 N1 - PDF (Download)

5SLD 1200J330100

3300 1200 (4) – Dual Diode - 2,35 J - PDF (Download)

5SNA 1200E330100

3300 1200 (1) – Single IGBT 3,8 2,35 E - PDF (Download)

5SNA 1200G330100

3300 1200 (1) – Single IGBT 3,85 2,35 G - PDF (Download)
Tvj(operational) up to 150°C
1.7 kV

5SNA 2400E170305

1700 2400 (1) – Single IGBT 2,4 1,67 E - PDF (Download)

5SNA 3600E170300

1700 3600 (1) – Single IGBT 3,0 1,95 E - PDF (Download)

5SLA 3600E170300

1700 3600 (6) – Single Diode - 1,95 E - PDF (Download)
2.5 kV

5SNA 1500E250300      New

2500 1500 (1) – Single IGBT 2,5 2,0 E - PDF (Download)
3.3 kV

5SNG 0250P330305

3300 2 x 250 (5) – Half Bridge 3,1 2,25 P - PDF (Download)

5SLG 0500P330300

3300 2 x 500 (7) – Diode Bridge - 2,25 P - PDF (Download)

5SND 0500N330300

3300 2 x 500 (3) – Dual IGBT 3,1 2,25 N2 - PDF (Download)

5SLD 1000N330300

3300 2 x 1000 (4) – Dual Diode - 2,25 N1 - PDF (Download)

5SNA 1000N330300

3300 1000 (1) – Single IGBT 3,1 2,25 N1 - PDF (Download)

5SNA 1500E330305

3300 1500 (1) – Single IGBT 3,1 2,25 E - PDF (Download)
Tvj(operational) up to 125°C
4.5 kV

5SNG 0150P450300

4500 2 x 150 (5) – Half Bridge 3,5 3,45 P - PDF (Download)

5SLG 0600P450300

4500 2 x 600 (7) – Diode Bridge - 3,5 P - PDF (Download)

5SLD 0650J450300

4500 2 x 650 (4) – Dual Diode - 3,4 J - PDF (Download)

5SNA 0650J450300

4500 650 (1) – Single IGBT 3,7 3,4 J - PDF (Download)

5SNA 0800J450300

4500 800 (1) – Single IGBT 3,55 3,5 J - PDF (Download)

5SLD 1200J450350

4500 2 x 1200 (4) – Dual Diode - 3,5 J - PDF (Download)

5SNA 1200G450300

4500 1200 (1) – Single IGBT 3,55 3,5 G - PDF (Download)

5SNA 1200G450350

4500 1200 (1) – Single IGBT 3,55 3,5 G - PDF (Download)
6.5 kV

5SNA 0400J650100

6500 400 (1) – Single IGBT 5,4 3,4 J - PDF (Download)

5SNA 0500J650300

6500 500 (1) – Single IGBT 3,9 3,4 J - PDF (Download)

5SLD 0600J650100

6500 2 x 600 (4) – Dual Diode - 3,4 J - PDF (Download)

5SNA 0600G650100

6500 600 (1) – Single IGBT 5,4 3,4 G - PDF (Download)

5SNA 0750G650300

6500 750 (1) – Single IGBT 3,9 3,4 G - PDF (Download)
