Les photos sont à titre informatif uniquement. Voir les spécifications du produit
please use latin characters
Technical data
|
|
---|---|
Printing technology
|
Thermal
|
Type of printhead
|
Flat
|
Printing width
|
13 - 108 mm
|
Printing length
|
10 - 609,6 mm
|
Label backing width
|
112 mm
|
Resolution
|
203 dpi
|
Printing speed
|
Up to 127 mm/s
|
Memory
|
2 MB DRAM, 1 MB Flash
|
Supported barcodes
|
Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11,
Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN i UPC 2(5) MSI, ITF, Plessey, Postnet, RSS |
Supported 2D codes
|
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
|
Interfaces
|
Port szeregowy, LPT, USB 1.1
|
Dimensions
|
200 (szer.) x 169 (wys.) x 230 (głęb.) mm
|
Additional options
|
Blade - partial clipping, Blade - full clipping, memory,
label peel-off module, external LAN port |
Weight
|
2 kg (not including labels and power supply)
|
Consumables | |
Paper roll - internal diameter
|
25,4 - 76,2 mm
|
Paper roll - internal diameter
|
127 mm / 214 mm with external label feeder
(inward- and outward-facing rolls available) |
Thermal paper thickness
|
0,06 - 0,19 mm
|

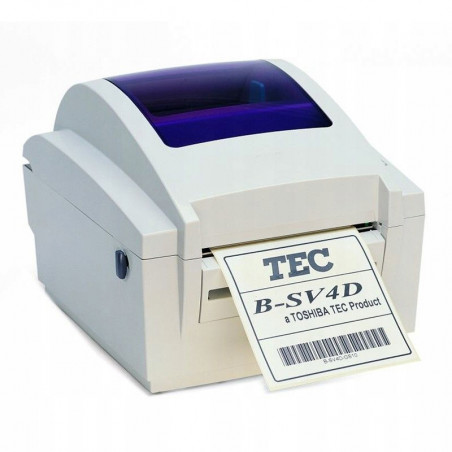

B-SV4D
Thermal office printer |
||||||||
---|---|---|---|---|---|---|---|---|
Model | Description | Printing resolution (dpi) | Max. printing speed (mm/s) | Max. printing width (mm) | Port RS | LPT | USB | LAN |
B-SV4D-GS10-QM-R
|
Standard version
|
203 | 127 | 108 | V | V | V | |
B-SV4D-GS12-QM-R
|
Version with printserv.
|
203 | 127 | 108 | V | V | V | |
B-SV4D-GC10-QM-R
|
Version with blade
|
203 | 127 | 108 | V | V | V | |
B-SV4D - options
|
||||||||
B-SV704-LAN-QP-R
|
Printserver connected through LPT port
|
|||||||
B-SV904-PH-QM-R
|
External label feeder
|
|||||||
B-SV404-QM-R
|
Blade - full clipping
|
|||||||
B-SV204-QM-R
|
Blade - partial clipping
|
|||||||
B-SV904-H-QM-R
|
Label peel-off module
|
|||||||
BP-2000-R
|
Battery
|
|||||||
B-SV704-E1M-QM
|
Memory module 1MB
|
|||||||
B-SV704-E2M-QM
|
Memory module 2MB
|
|||||||
B-SV704-E3M-QM
|
Memory module 4MB
|
|||||||
B-SV704-E6M-QM
|
Memory module 6MB
|
|||||||
B-SV704-E8M-QM
|
Memory module 8MB
|
|||||||
B-SV4D - spare parts
|
||||||||
FMYC0003602
|
Printhead
|
Êtes-vous intéressé par ce produit? Avez-vous besoin d'informations supplémentaires ou d'une tarification individuelle?
Ajouter à la liste de souhaits
Vous devez être connecté
Technical data
|
|
---|---|
Printing technology
|
Thermal
|
Type of printhead
|
Flat
|
Printing width
|
13 - 108 mm
|
Printing length
|
10 - 609,6 mm
|
Label backing width
|
112 mm
|
Resolution
|
203 dpi
|
Printing speed
|
Up to 127 mm/s
|
Memory
|
2 MB DRAM, 1 MB Flash
|
Supported barcodes
|
Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11,
Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN i UPC 2(5) MSI, ITF, Plessey, Postnet, RSS |
Supported 2D codes
|
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
|
Interfaces
|
Port szeregowy, LPT, USB 1.1
|
Dimensions
|
200 (szer.) x 169 (wys.) x 230 (głęb.) mm
|
Additional options
|
Blade - partial clipping, Blade - full clipping, memory,
label peel-off module, external LAN port |
Weight
|
2 kg (not including labels and power supply)
|
Consumables | |
Paper roll - internal diameter
|
25,4 - 76,2 mm
|
Paper roll - internal diameter
|
127 mm / 214 mm with external label feeder
(inward- and outward-facing rolls available) |
Thermal paper thickness
|
0,06 - 0,19 mm
|
B-SV4D
Thermal office printer |
||||||||
---|---|---|---|---|---|---|---|---|
Model | Description | Printing resolution (dpi) | Max. printing speed (mm/s) | Max. printing width (mm) | Port RS | LPT | USB | LAN |
B-SV4D-GS10-QM-R
|
Standard version
|
203 | 127 | 108 | V | V | V | |
B-SV4D-GS12-QM-R
|
Version with printserv.
|
203 | 127 | 108 | V | V | V | |
B-SV4D-GC10-QM-R
|
Version with blade
|
203 | 127 | 108 | V | V | V | |
B-SV4D - options
|
||||||||
B-SV704-LAN-QP-R
|
Printserver connected through LPT port
|
|||||||
B-SV904-PH-QM-R
|
External label feeder
|
|||||||
B-SV404-QM-R
|
Blade - full clipping
|
|||||||
B-SV204-QM-R
|
Blade - partial clipping
|
|||||||
B-SV904-H-QM-R
|
Label peel-off module
|
|||||||
BP-2000-R
|
Battery
|
|||||||
B-SV704-E1M-QM
|
Memory module 1MB
|
|||||||
B-SV704-E2M-QM
|
Memory module 2MB
|
|||||||
B-SV704-E3M-QM
|
Memory module 4MB
|
|||||||
B-SV704-E6M-QM
|
Memory module 6MB
|
|||||||
B-SV704-E8M-QM
|
Memory module 8MB
|
|||||||
B-SV4D - spare parts
|
||||||||
FMYC0003602
|
Printhead
|
