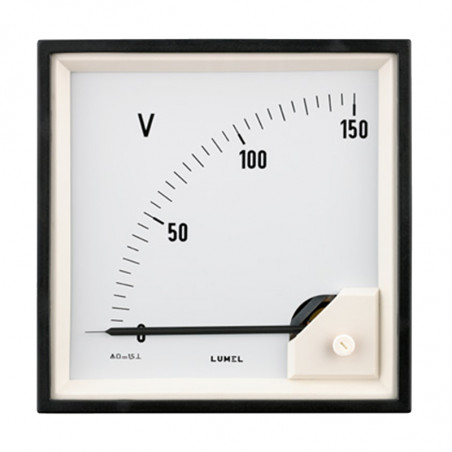

Courant électromagnétique et tension alternative

Moving-iron meters AC

Application

EA16, EB16, EA17, EA19 and EA12 moving-iron meters are intended for measuring AC voltage or AC current. These meters measure the true RMS value and their indications are highly independent of the measured value curve shape.
EA16, EA17, EA19 and EA12 meters are designed for mounting into panels. EB16 meters are adapted for a fast assembly rail mounting (35 mm rail) in compliance with EN 60715 standards.
EA16, EA17 and EA19 meters are designed to interchangeable dials.

TECHNICAL DATA
Accuracy class 1.5
Measured value frequency 40...45...65...72 Hz
Execution of ammeters normal scale version or version with
100% overload. Other overcurrent
scale, on request after agreement.
Self-consumption see table 1
Matching the measurement range of the meter to transformer ranges by exchange of the dial. The dial is put forward the slot in upper case side.
Note: EA12 (144 x 144) meters are not provided for interchangeable dials
Additional errors according to the standard
 PN-EN 60051-2

CATEGORIES OF METER CLIMATIC VERSIONS

If it is not written otherwise in the order, these meters are intended to use in moderate climatic conditions. Then, we do not place any symbol on the scale. On customers’ request, meters can be adapted to use in conditions of a dry or wet tropical climat. Then, they are marked with the T III symbol.

EA17 and EA19 meters (ammeters and voltmeters) destined to be used in ambient temperature up to 75°C or higher, are only available after a previous agreement with the manufacturer.

Requirements concerning safety acc.EN 61010-1 standard:

For EA16 and EB16 meters and meters with rectifiers:
- maximal phase-earth working voltage 600V
- installation category 2
- pollution degree 2
For EA17, EA19 and EA12 meters:
- maximal phase-earth working voltage 600 V
- installation category III
- pollution degree 2
Protection Grade acc. to EN 60529
- in standard option   IP 50 for EA16, EA17, EA19, EA12 meters
    IP 54 (only for EA12 meter)
    IP 52 (only for EB16 meter)
- with IP 65 front protection grade (on request):   for EA16, EA17, EA19 meters
-IP 20 terminal protection (with a terminal protective cover)
Case material thermoplastic material
Meter glass material glass
Additional setting pointer On customers’ request EA17 and EA19 meters can be equiped with an additional setting red pointer fixed in the glass.

ACCESSORIES
We deliver with the meter:
- screw holders (for IP50 or IP54 option) 2 pcs
- screw holders (for IP65 option) 4 pcs
- spring holders (only for EA16) 2 pcs
- terminal protection cover 1 pc
We can also deliver on request, current and voltage transformers
Ac current and ac voltage direct measurement ranges
Frontal frame dimensions [mm] 48 x 48*) 72 x 72 96 x 96 144 x 144
Scale length [mm] 42 61 95 160
Weight [kg] 15 2 25 4
Type EA16, EB16 EA17 EA19 EA12
Measuring range Self-consumption ± 10%
100 mA 0.43 VA 0.20 VA 0.20 VA 0.48 VA
150 mA 0.46 VA 0.37 VA 0.37 VA 0.46 VA
250 mA 0.44 VA 0.31 VA 0.31 VA 0.38 VA
400 mA 0.43 VA 0.40 VA 0.40 VA 0.48 VA
600 mA 0.42 VA 0.38 VA 0.38 VA 0.46 VA
1 A 0.45 VA 0.31 VA 0.31 VA 0.38 VA
1,5 A 0.47 VA 0.37 VA 0.37 VA 0.45 VA
2,5 A 0.44 VA 0.33 VA 0.33 VA 0.40 VA
4 A 0.45 VA 0.30 VA 0.30 VA 0.36 VA
6 A 0.58 VA 0.44 VA 0.44 VA 0.56 VA
10 A 0.55 VA 0.44 VA 0.44 VA 0.55 VA
15 A 0.65 VA 0.60 VA 0.60 VA 0.65 VA
25 A 0.58 VA 0.60 VA 0.60 VA 0.70 VA
40 A – 0.85 VA 0.85 VA 0.85 VA
60 A – 1.20 VA 1.20 VA 1.20 VA
100 A – 1.90 VA 1.90 VA 1.90 VA
For a transformer. Measuring ranges acc. table 2
... x/1 A 0.45 VA 0.31 VA 0.31 VA 0.38VA
... x/5 A  0.48VA   0.36 VA   0.36 VA> 0.44 VA
6 V 2.1 VA 1.40 VA 1.40 VA 1.30 VA
10 V 2.2 VA 1.60 VA 1.60 VA 1.50 VA
15 V 2.0 VA 1.80 VA 1.80 VA 1.70 VA
25 V 2.3 VA 2.00 VA 2.00 VA 1.90 VA
40 V 2.3 VA 1.70 VA 1.70 VA 1.60 VA
60 V 2.4 VA 2.10 VA 2.10 VA 2.00 VA
100 V 2.6 VA 2.20 VA 2.20 VA 2.10 VA
150 V 2.5 VA 2.20 VA 2.20 VA 2.10 VA
250 V 2.1 VA 2.40 VA 2.40 VA 2.20 VA
400 V 2.2 VA 2.40 VA 2.40 VA 2.30 VA
500 V 2.8 VA 2.90 VA 2.90 VA 2.80 VA
600 V 3.0 VA 2.30 VA 2.30 VA 2.20 VA
800 V – 1.90 VA 1.90 VA 1.80 VA
1000 V – 2.40 VA 2.40 VA 2.30 VA
For a transformer. Measuring ranges acc. table 2
.../100 V   2.20 VA 2.20 VA 2.10 VA
.../110 V   2.40 VA 2.40 VA 2.30 VA
*) It concerns EA16 meters, for the frontal frame dimensions of EB16 meters, see Fig.1.

MEASURING RANGES WITH MEASURING TRANSFORMERSH

Ammeters Voltmeters
Measuring range Transformer Measuring range Transformer

1 A –  1/1 4 kV 3000/100 V
5 A 5/5 5/1 6 kV 6000/100 V
6 A 6/5  6/1 10 kV 10 000/100 V
6 A 5/5  – 15 kV 15 000/100 V
10 A 10/5 10/1 20 kV 20 000/100 V
15 A 15/5 15/1 40 kV 30 000/100 V
20 A 20/5 20/1 60 kV 60 000/100 V
30 A 30/5 30/1 150 kV 150 000/100 V
40 A 40/5 40/1 250 kV 250 000/100 V
50 A 50/5 50/1 400 kV 400 000/100 V
60 A 60/5 60/1
80 A 75/5  – 4 kV 4000/100 V
100 A 100/5 100/1 8 kV 6000/100 V
150 A 150/5 150/1 20 kV 15 000/100 V
200 A 200/5 200/1 150 kV 110 000/100 V
300 A 300/5 300/1 250 kV 220 000/100 V
400 A 400/5 400/1
500 A 500/5 500/1
600 A 600/5 600/1
800 A 800/5  –
1 kA 1000/5 1000/1
1,2 kA 1200/5 1200/1
1,5 kA 1500/5 1500/1
2 kA 2000/5 2000/1
3 kA 3000/5 3000/1
4 kA 4000/5 4000/1
5 kA 5000/5 5000/1
6 kA 6000/5 6000/1
8 kA 8000/5 8000/1
10 kA 10 000/5 10000/1

External dimensions

Moving-iron meters AC EB16
Fig.1. External dimensions of EB16 meters.

Moving-iron meters AC EA16
Fig.2. External dimensions of EA16 meters
a) with screw holders,
b) with spring holders

Moving-iron meters AC EA17, EA19, EA12

Type   a b c d e f g k
mm
EA17 72 4 68-0.3 5 45 10... 20 20.5 68+0.7
EA19 96 4 92-0.3 5 45 10... 20 32.5 92+0.8
EA12 144 4.5 137.3-0.5 6 48 10... 20 55.5 138+1.0

Fig.3. External dimensions of EA17, EA19, EA12 meters

Moving-iron meters AC Moving-iron meters AC
Type a b k
EA16 58 47 47.2+0.6
EA17 81 70 70.2+0.7
EA19 105 94 94.2+0.8

Fig.4. External dimensions of meters with IP65 protection grade

Fastening on panels
• EA16 meters
The meters are adapted to be mounted from the front of panels and then they are equiped with two spring holders, which can be fixed on arbitrary
opposite case sides (Fig. 2b) or to be mounted from the rear of panels and then they are equiped with two screw holders which can be fixed on
arbitrary, opposite case corners (Fig. 2a).
• EA17, EA19 and EA12 meters
In their basic execution these meters are adapted to be mounted from the rear of panels by means of two screw holders which can be fixed on
arbitrary opposite case corners (Fig. 4).
After agreeing with the manufacturer, EA17 and EA19 meters can be delivered with a snap fastened frontal frame and then these meters can be
mounted from the front of panels by means of two spring holders fixed on arbitrary opposite case sides.
Moving-iron meters AC
Fig. 5. Fixation on the panel by means of two screw-holders.


Coding of the working position
Moving-iron meters AC
Code Working position
0 c3  α = 90°
A c1  α = 0°
B c2, α = 15°
C c2, α = 30°
D c2, α = 45°
E c2, α = 60°
F c2, α = 75°
H c4, α = 105°
I c4, α = 120°
