Fabricant: PREMIUM

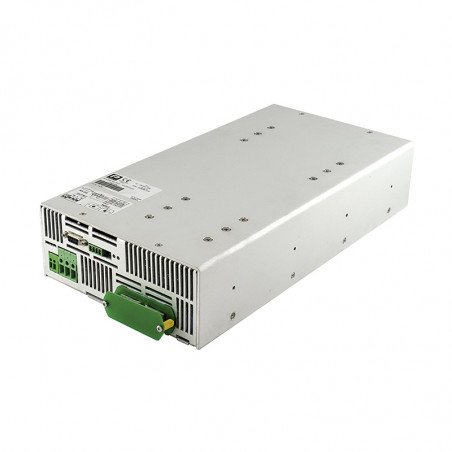

Inverseurs industriels et à haute puissance 3000 VA DC / AC

The ODS-3000 is a single phase sinewave 120Vac or 230Vac DC/AC inverter series that delivers up to 4000VA. Input and output signals are galvanic isolated and the output voltage can be adjusted via RS232 along with other parameters that can be monitored and controlled through an application available with all models. The input voltage ranges from 24Vdc to 300Vdc and frequency can be set to 50Hz or 60Hz via a dip switch.

The ODS-3000 DC/AC inverters consist of two cascaded converters, one DC-DC generates an intermediate output voltage from the input voltage. That intermediate voltage is inverted to supply the output voltage and frequency by means of a second DC/AC converter. It also features maximum average power protection as well as maximum output peak current protection. All models are designed to comply with the EN50155 standard for rolling stock and fit perfectly in a wide variety of industrial application. This inverter series has been designed for chassis mounting and a rackmount kit is available as well. Cooling takes place through an internal fan and models offer up to 91% efficiency.

Parameters in the ODS-3000 can be set and monitored via RS232 through the PAM Tool available with all models.
KEY FEATURES
  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Remote control via RS232
  • Alarm by isolated relay contacts
  • Remote off opto-coupled
  • Optional railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 92%
PRODUCT WARRANTY
  • 3 years for Industrial version
  • 5 years for Railway version
ACCESSORIES
  • Mounting brackets kit
  • Signals female connector
  • 19″rackmount tray kit (2U)


ModelInputOutputPowerOutput peak currentEfficiencyNo load input current
5s10ms (Iopk)

7153

 24 Vdc 230 Vac 2400 VA 15A 32A 89% < 0.7 A

7154

 36 Vdc 230 Vac 3000 VA 20A 32A 90% < 0.5 A

7155

 48 Vdc 230 Vac 3000 VA 20A 32A 91% < 0.4 A

7156

 72 Vdc 230 Vac 3000 VA 20A 32A 91% < 0.3 A

7157

 110 Vdc 230 Vac 3000 VA 20A 32A 92% < 0.2 A

7163

 24 Vdc 120 Vac 2400 VA 28A 52A 88% < 0.7 A

7164

 36 Vdc 120 Vac 2500 VA 32A 52A 89% < 0.5 A

7165

 48 Vdc 120 Vac 2500 VA 32A 52A 89% < 0.4 A

7166

 72 Vdc 120 Vac 2500 VA 32A 52A 90% < 0.3 A

7167

 110 Vdc 120 Vac 2500 VA 32A 52A 91% < 0.2 A
