Fabricant: PREMIUM

Invertisseurs CC / AC pour les applications industrielles et ferroviaires 450-750 W

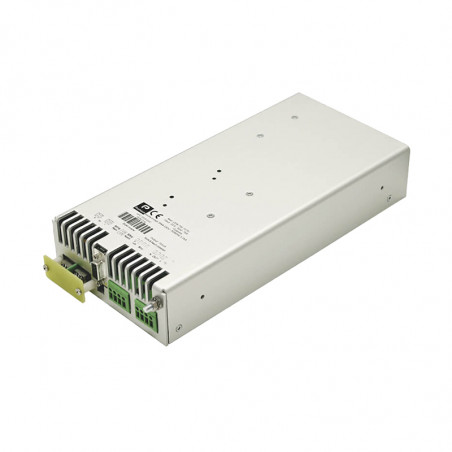

The ODS-750 is a sine wave, single phase DC/AC inverter. The series offers 450W-750W power and is available with 120Vac or 230Vac output and a wide range of input voltages (12, 24, 36, 48, 72, and 110Vdc). With a robust design, it fits in a wide range of industrial applications that require high reliability with a compact design. A version for railway applications is also available for all models, which comply with EN50155 and RIA12.

The ODS-750 DC/AC has M3 threaded holes for chassis mounting in different positions, DIN rail or subrack mounting. The equipment is protected against reverse polarity, maximum average power and maximum peak current.

It also shutsdown when the operation curve limit is exceeded for over 1 second.

KEY FEATURES
  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Railway version EN50155, RIA12 (optional)
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 89%
PRODUCT WARRANTY
  • 3 years for Industrial version
  • 5 years for Railway version
ACCESSORIES
  • Mechanical interface for subrack (6U 11TE)
  • Mounting base
  • DIN rail mounting kit

ModelInput voltageInput V rangeOutput voltagePowerEfficiencyNo load input current

7071

 12 Vdc 9.5 ..15V 230 Vac 450 VA 85% < 0.8 A

7073

 24 Vdc 16.8 .30V 230 Vac 750 VA 86% < 0.4 A

7075

 48 Vdc 33.6 .60V 230 Vac 750 VA 88% < 0.2 A

7076

 72 Vdc 50.4 .90V 230 Vac 750 VA 88% < 0.15 A

7077

 110 Vdc 77 ...138V 230 Vac 750 VA 89% < 0.1 A

7081

 12 Vdc 9.5 ..15V 120 Vac 450 VA 84% < 0.8 A

7083

 24 Vdc 16.8 .30V 120 Vac 750 VA 86% < 0.4 A

7085

 48 Vdc 33.6 .60V 120 Vac 750 VA 87% < 0.2 A

7086

 72Vdc 50.4 .90V 120 Vac 750 VA 87% < 0.15 A

7087

 110 Vdc 77 ...138V 120 Vac 750 VA 88% < 0.1 A
