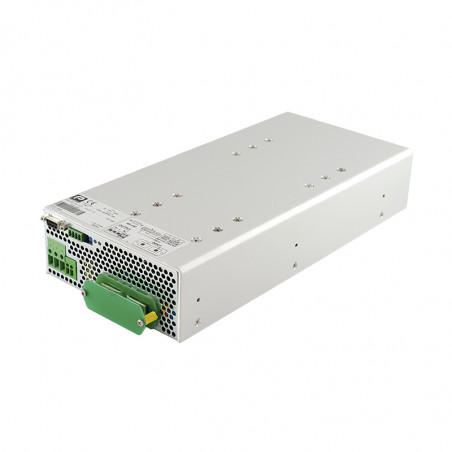

ODS-1500 - Inverseurs industriels et ferroviaires 1500VA DC / AC
  • ODS-1500 - Inverseurs industriels et ferroviaires 1500VA DC / AC

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: PREMIUM

ODS-1500 - Inverseurs industriels et ferroviaires 1500VA DC / AC

Specifications

The ODS-1500 is a series of single phase sinusoidal DC/AC inverters that offer up to 1500W of active power with adjustable output voltage and frequency and input voltage range from 12Vdc to 110Vdc, allowing many possible input-output combinations. The output voltage can be monitored and adjusted along with other parameters via RS232 through an application available with all models.

All ODS-1500 DC/AC inverters have been designed for industrial applications that require a robust and compact design and versions are available to comply with the EN50155 standard for rolling stock, with a tropicalized circuit and improved robustness. This inverters has been designed for chassis mounting and a rackmount kit is available as well. Cooling takes place through an internal fan and models offer up to 91% efficiency.

The ODS-1500 are equipped with a maximum average power protection as well as maximum output peak current protection, protecting the unit even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.

KEY FEATURES
  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Remote control via RS232
  • Alarm by isolated relay contacts
  • Remote off opto-coupled
  • Optional railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 91%
PRODUCT WARRANTY
  • 3 years for Industrial version
  • 5 years for Railway version
ACCESSORIES
  • Mounting brackets kit
  • DIN rail mounting kit
  • Signals female connector
  • 19″rackmount tray kit (2U)

ModelInputOutputPowerOutput peak currentEfficiencyNo load input current
5s10ms (Iopk)

7111

 12 Vdc 230 Vac 1200 VA 6.8A 16A 87% < 0.8 A

7113

 24 Vdc 230 Vac 1500 VA 10A 16A 88% < 0.4 A

7115

 48 Vdc 230 Vac 1500 VA 10A 16A 90% < 0.2 A

7116

 72 Vdc 230 Vac 1500 VA 10A 16A 90% < 0.15 A

7117

 110 Vdc 230 Vac 1500 VA 10A 16A 91% < 0.1 A

7121

 12 Vdc 120 Vac 1200 VA 13A 30A 86% < 0.8 A

7123

 24 Vdc 120 Vac 1500 VA 20A 30A 88% < 0.4 A

7125

 48 Vdc 120 Vac 1500 VA 20A 30A 89% < 0.2 A

7126

 72 Vdc 120 Vac 1500 VA 20A 30A 89% < 0.15 A

7127

 110 Vdc 120 Vac 1500 VA 20A 30A 90% < 0.1 A
