Inverseurs Phoenix 180VA-1200VA
  • Inverseurs Phoenix 180VA-1200VA

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: Victron energy

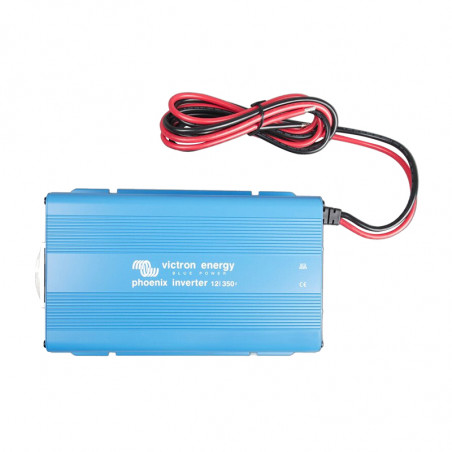

Inverseurs Phoenix 180VA-1200VA


Phoenix Inverter 12/180


Phoenix Inverter 12/800 with Schuko socket

SinusMax – Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power
A unique feature of the SinusMax technology is veryhigh start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as computers and low power electric tools.

To transfer the load to another AC source: the automatic transfer switch
For our lower power models we recommend the use of our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 miliseconds) so that computers and other electronic equipment will continue to operate without disruption.

LED diagnosis
Please see manual for a description.

Remote on/off switch
Connector for remote on/off switch available on allmodels.

DIP switch for 50/60Hz selection (48/350 model only)

Available with different output sockets
Please see pictures below.


Phoenix Inverter 12/800 with IEC-320 socket


Phoenix Inverter 12/800 with Schuko socket


Phoenix Inverter 12/800 with BS 1363 socket


Phoenix Inverter 12/800 with AN/NZS 3112 socket


Phoenix Inverter 12/800 with Nema 5-15R socket

Inwerter Phoenix 12V 12/180 12/350 12/800 12/1200
24V 24/180 24/350 24/800 24/1200
48V   48/350 48/800 48/1200
Cont. AC power 25oC [VA] 180 350 800 1200
Cont. AC power 25oC/40oC [W] 175/150 300 / 250 700 / 650 1000 / 900
Peak power [W] 350 700 1600 2400
Output AC voltage/częstotliwość 110VAC or 230VAC +/- 3%       50Hz or 60Hz +/- 0,1%
Input voltage range [V DC] 10,5 - 15,5 / 21,0 - 31,0 / 42,0 - 62,0 9,2 - 17,3 / 18,4 - 34,0 / 36,8 - 68,0
Low battery alarm [V DC] 11,0 / 22 / 44 10,9 / 21,8 / 43,6
Low battery shut down[V DC] 10,5 / 21 / 42 9,2 / 18,4 / 36,8
Low battery auto recovery [V DC] 12,5 / 25 / 50 12,5 / 25 / 50
Max. efficiency [%] 87 / 88 89 / 89/ 90 91 / 93 / 94 92 / 94 / 94
Zero-load power [W] 2,6 / 3,8 3,1 / 5,0 / 6,0 6 / 5 / 4 6 / 5 / 6
Zero-load power in serarch mode - - 2 2
Protection a - e
Operating temperature range -400C do 500C (fan assisted cooling)
Humidity (non condensing) max 95%
ENCLOSURE
Material [&] Colour aluminium (blue RAL 5012)
Battery-connection 1) 1) 1) 1)
Standard AC outlets 230V: IEC-320 (IEC-320 plug included), CEE 7/4 (Schuko)
120V: Nema 5-15R
Other outlets (at request) BS 1363 (United kingdom)
AN/NZS 3112 (Australia, New Zeland)
Protection category IP20
Weight [kg/lbs] 2,7 / 5,4 3,5 / 7,7 6,5 / 14.3 8,5 / 18.7
Dimensioins (hxwxd in mm) 72x132x200 72x155x237 108x165x305 108x165x305
Dimensioins (hxwxd in inches) 2.8x5.2x7.9 2.8x6.1x9.3 4.2x6.4x11.9 4.2x6.4x11.9
Standards
Safety EN 60335-1
Emission Immunity EN55014-1 / EN 55014-2/ EN 61000-6-2 / EN 61000-6-3
  1. Battery cables of 1.5 meter (12/180
    with cigarette plug)
  2. Protection key:
    a) output short circuit
    b) overload
    c) battery voltage too high
    d) battery voltage too low
    e) temperature too high

  1. Non linear load, crest factor 3:1
  2. Frequency can be set by DIP switch (48/350 modelonly)
