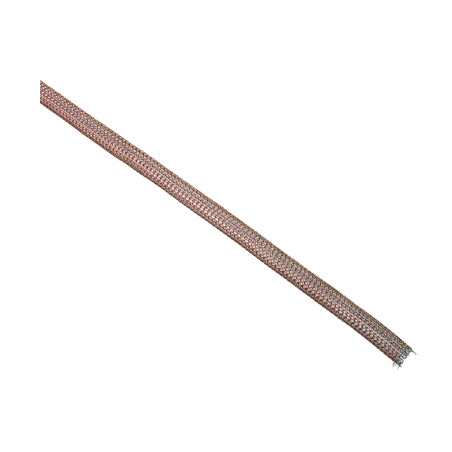

Joints de printemps en grille tressée
  • Joints de printemps en grille tressée

Les photos sont à titre informatif uniquement. Voir les spécifications du produit

please use latin characters

Fabricant: TEMAS

Joints de printemps en grille tressée

  • minimum compression force and high resiliency gaskets
  • optimum attenuating properties:
    • beryllium copper, e-field
    • tin copper clad steel, h-field
  • 90% free height recovery after deflection during operative life
  • no moisture absorption
  • continuous or cut-to-length gaskets
  • pressure sensitive adhesive (as an option on d-section gaskets only)


Available materials:

  • beryllium copper  (BC)
  • stainless steel  (SL)
  • beryllium copper tin plated  (BT)
  • tinned copper clad steel (*) (TC)

Complete the P/N with:

  • number of wires
  • 2-letters METAL SUFFIX

Order example

SB.032.127.1-SL Double P-section, 3.2x12.7 mm,1 stainless steel wire
SD.080.095.2-BC D-section, 8.0x9.5 mm, 2 beryllium copper wirese

Round

Uszczelki sprężynujące z siatki plecionej

P/N Diameter
[mm]

ST.016

 1.6

ST.024

 2.4

ST.032

 3.2

ST.048

 4.8

ST.064

 6.4

ST.080

 8.0

ST.095

 9.5

ST.111

 11.1

ST.127

 12.7

  P section

Uszczelki sprężynujące z siatki plecionej

P/N Diameter  (H)
[mm]		 Width (W)
[mm]

SP.016.095

 1.6 9.5

SP.024.127

 2.4 12.7

SP.032.127

 3.2 12.7

SP.032.159

 3.2 15.9

SP.048.159

 4.8 15.9

SP.064.191

 6.4 19.1

SP.064.254

 6.4 25.4

SP.080.254

 8.0 25.4

SP.095.320

 9.5 32.0


Double P section

Uszczelki sprężynujące z siatki plecionej

P/N Diameter  (H)
[mm]		 Width (W)
[mm]

SB.024.127

 2.4 12.7

SB.032.127

 3.2 12.7

SB.032.159

 3.2 15.9

SB.048.159

 4.8 15.9

SB.048.191

 4.8 19.1

SB.064.191

 6.4 19.1

SB.064.254

 6.4 25.4

SB.080.254

 8.0 25.4

SB.095.320

 9.5 32.0

D section

Uszczelki sprężynujące z siatki plecionej

P/N Diameter  (H)
[mm]		 Width (W)
[mm]

SD.032.051

 3.2 5.1

SD.048.064

 4.8 6.4

SD.064.080

 6.4 8.0

SD.080.095

 8.0 9.5

SD.095.127

 9.5 12.7


Other size, configurations or ready-to-mount finished gaskets (according to your drawing) available upon request
