Fabricant: Lumberg

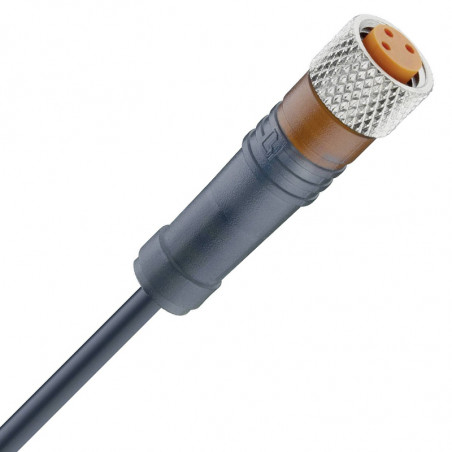

Câbles de Lumberg pour capteurs et bouchons avec fil M8

Technical data
Usage class: HNA  DIN 400 40
(-25°C - 80°C)
Current 4A
Voltage 60 V AC / 75 V DC
Contact base TPU, GF self-extinguished
Insulation group C according to VDE 0110
Test voltage: 1.5kVwartskut/60s
Contact: CuZn, nickel 0,8 μm golden
Insulation resistance >1090
handle body: TPU, self-extinguished
Cable colour code according to EU standards
IP: IP 65 ; IP67
  3 or 4 x 0,34 mm2(42 x Ø 0,1 mm) coat PUR or PCV
black or orange, good resistance for chemicals (PCV) and oils (PUR)
PUR cable:non halogen



Producer number Description

RKM 3-224/2 m
RKM 3-224/5 m
 3 contact female insert, ,
with cable drowned with PUR
Ø cable 4,5 mm, colour black
Ø insert connector 8 mm,
length insert connector 30,5 mm
cable length 2 m
cable length 5 m

RKMV4-225/2m
RKMV 4-225/5 m
RKMV 4-225/10 m
 4 contact female insert, self protected
thread closure, with cable drowned with PUR, Ø cable 5 mm, colour black,
Ø insert connector 10 mm,
length insert connector 30,5 m m
cable length 2 m
cable length 5 m
cable length 10 m

RKMW 3-224/2 m		 3 contact female insert angular, ,
with cable drowned with PUR,
Ø cable 4,5 mm, colour black.
Ø insert connector 8 mm,
length insert connector 26/16 mm
cable length 2 m

RKM W/LED A 3-224/5 m		 3 contact female insert angular,
,
with cable drowned with PUR,
 with 2 LED diodes (yellow/green) for work and function indication. 3-biegunowe
limited operating voltage 10...30 V DC
LED.
Connection scheme: NO pnp
cable length 5 m

RKMWV/LED A 3-06/2 m
RKMWV/LED A 3-06/5 m
RKMWV/LED A 3-06/10m

3 contact female insert angular,
self protected thread closure,  cable drowned with PCV, with 2 diodes(yellow/green) for work and function indication.
3-pole operating voltage limited to 10...30 V DC by LED. Connection scheme: NO pnp
cable length 2 m
cable length 5 m
cable length 10 m





Producer number Description
3 contact male insert, thread closure,
with cable drowned withPUR,
Ø cable 4,5 mm, colour black
Ø plug10 mm, length plug37 mm
cable length 2 m
cable length 5 m
RSM V 3-224/2 m
RSMV 3-224/5 m
4 contact male insert, thread closure
with cable drowned withPUR,
Ø cable 4,5 mm, colour black
Ø plug10 mm, length plug 37 mm
cable length 2 m
cable length 5 m
cable length 10 m
RSM V 4-225/2 m
RSM V 4-225/5 m
RSMV 4-225/IOm
3 contact female insert, thread closure,
with cable drowned withPUR,
Ø cable 4,5 mm, colour black,
Ø insert connector 10 mm, length insert connector 30,5 mm
cable length 2 m
cable length 5 m
cable length 10 m
RKM V 3-224/2 m
RKMV 3-224/5 m
RKMV 3-224/10 m

3 contact female insert, thread closure,
Ø cable5 mm, colour orange,
Ø insert connector 10 mm, length insert connector 30,5 mm
cable length 2 m
cable length 5 m
cable length 10 m
RKMV 3-06/2 m
RKMV 3-06/5 m
RKMV 3-06/10 m
4 contact female insert, thread closure,
z zalewanym kablem z PCV,
Ø cable 5 mm,
colour orange, 4x 0,25 mm2 (32 x 0 0,1 mm)
Ø insert connector 10 mm, length insert connector 30,5 mm
cable length 2 m
cable length 5 m
cable length 10 m

RKM V 4-07/2 m
RKM V 4-07/5 m
RKMV 4-07/10 m

Producer number >Description
3 contact female insert , thread closure,
Ø cable 4,5 mm, colour black
Ø insert connector 10 mm
cable length 2m
cable length 5 m
cable length 10 m
RKMWV 3-224/5m
RKMWV 3-224/10m
4 contact female insert, angular thread closure,
  Ø cable 5 mm,
colour orange 4x 0,25 mm2 (32 x 0 0,1 mm) Ø insert connector 10 mm
cable length 2 m
cable length 5 m
cable length 10 m
RKMWV 4-07/5m
RKMWV 4-07/10m

Producer number Description
4-contact insert, angular, thread closure,
with cable drowned with PUR,
Ø cable 5 mm, colour black,
Ø insert connector 10 mm
cable length 2 m
cable length 5 m
cable length 10 m
RKMWV 4-225/2 m
RKMWV 4-225/5 m
RKMWV 4-225/10 m
3-contact insert, thread closure,
with cable drowned with PUR,
with 2 diodes(yellow/ green) for operation and function indication. 3 pole operating voltage limited to 10...30 V DC with LED.
Connection: NO pnp
cable length 2 m
cable length 5 m
cable length 10 m
RKMWWLED A 3-224/2m RKMWV/LED A 3-224/5m RKMWV/LED A3-224/10m
Insert for front assembly
contact base: PA 6.6 GF, self-extinguishing ,
/threaded, litz wire- 50 cm. Thread from the assembly side M8x0,5,screw connections from behind - RSKF 8
(for additional order).
3-contact
4-contact
RSMF 3/0,5 m
RSMF 4/0,5 m

Producer number Description
Insert for front assembly
thread closure with litz cable 50 cm.
Thread M8x0,5 from assembly side, screw connection from behind RSKF 8
(for additional order).
3-contact
4-contact
RKMF 3/0,5 m
RKMF 4/0,5 m
            RSKF8
Assembly nut
CuZn, Thread M8 x 0,5
